1408574 - Phoenix Contact

Description: SACC-SQ-M12MS-8CON-20-L180 - Device connector front mounting, Universal, 8-position, Pin, straight, M12-SPEEDCON, A-coding, Wave soldering, 0.25 mm<sup>2</sup>, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb &lt; 0.1%), a lead-free alternative is possible on request in advance

Download 1408574 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1408574 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

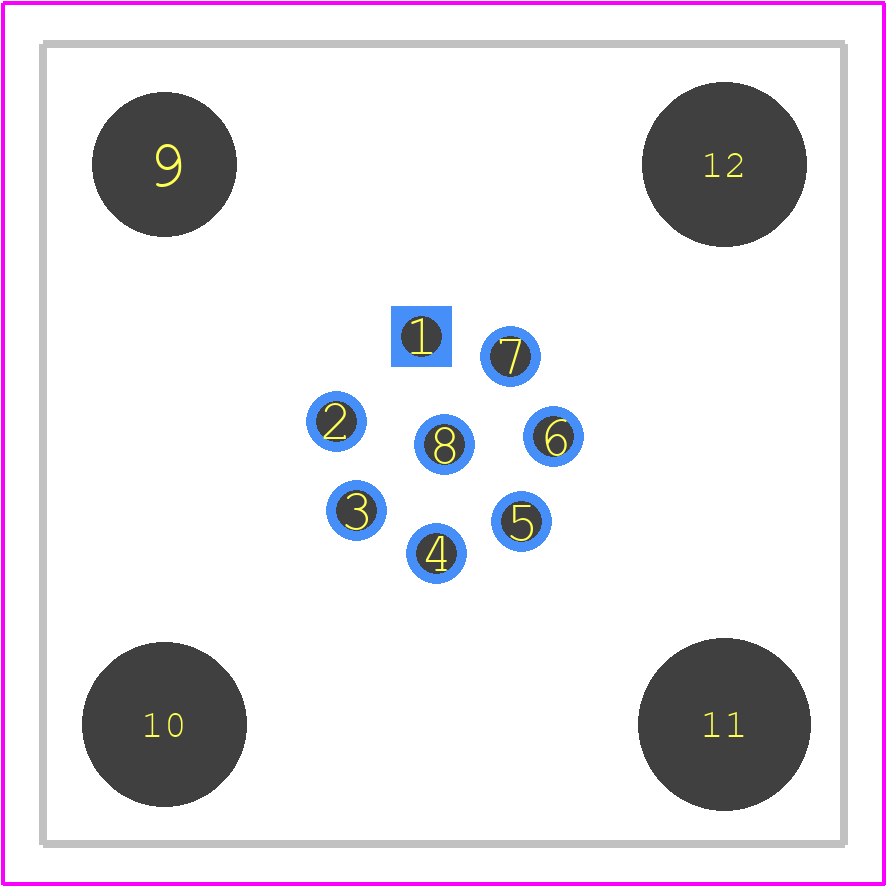

1408574 - Phoenix Contact PCB footprint - Other - Other - 1408574
click to zoom
3D Models
1408574 - Phoenix Contact - 3D model - Other - 1408574
click to zoom

1408574 Details

  • Manufacturer Part Number:

    1408574

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    IEC-61076-2-101, RATED CURRENT: 2A; RATED VOLTAGE: 30V

  • Backshell Type:

    SOLID

  • Body Depth:

    0.717 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • Mixed Contacts:

    YES

  • Mounting Type:

    CABLE AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;EAC;UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8
