1410516C - Murata Electronics

Description: High Current Radial Inductor 1mH 1.6A Murata 1000 μH ±10% Radial Inductor, Max SRF:1.4MHz, Q:30, 1.6A Idc, 419mΩ Rdc 1400

Download 1410516C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1410516C - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

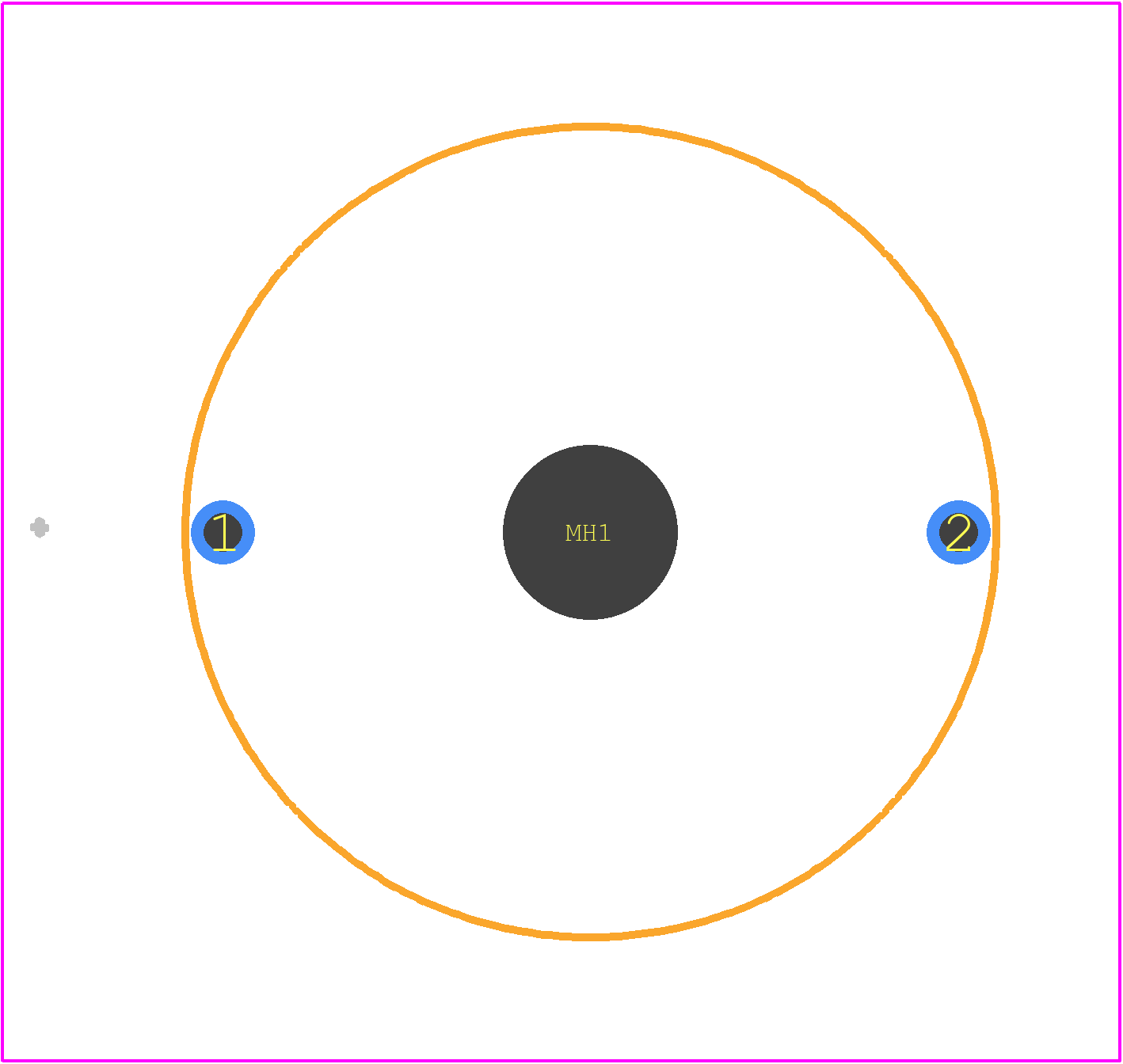

1410516C - Murata Electronics PCB footprint - Other - Other - 1410516C
click to zoom
3D Models
1410516C - Murata Electronics - 3D model - Other - 1410516C
click to zoom

1410516C Details

  • Manufacturer Part Number:

    1410516C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Construction:

    Bobbin

  • DC Resistance:

    0.46 Ω

  • Inductance-Nom (L):

    1000 µH

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Diameter:

    24.4 mm

  • Package Height:

    14 mm

  • Package Length:

    25.6 mm

  • Package Style:

    Radial

  • Package Width:

    24.4 mm

  • Packing Method:

    Bulk

  • Rated Current-Max:

    1.6 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Tolerance:

    10%

1410516C Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 1410516C can be found in the Murata Land Pattern Recommendation document, which provides detailed guidelines for PCB design and layout.
  • To prevent moisture-related issues, it's essential to follow proper storage and handling procedures, such as storing the components in a dry, sealed package, and avoiding exposure to high humidity or water.
  • The 1410516C is rated for operation between -40°C to +125°C, but it's essential to consult the datasheet for specific temperature-related derating and performance characteristics.
  • While the 1410516C is designed to be robust, it's crucial to evaluate the component's performance in high-vibration environments. Consult the datasheet and application notes for guidance on vibration testing and mitigation strategies.
  • To ensure EMC, follow proper PCB design and layout guidelines, use appropriate shielding and filtering, and consult the datasheet and application notes for specific EMC-related recommendations.
