1410524C - Murata Electronics

Description: MURATA POWER SOLUTIONS - 1410524C - Inductor, Bobbin, 1400 Series, 1 mH, 2.4 A, 2.4 A, 0.277 ohm, ± 10%

Download 1410524C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1410524C - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

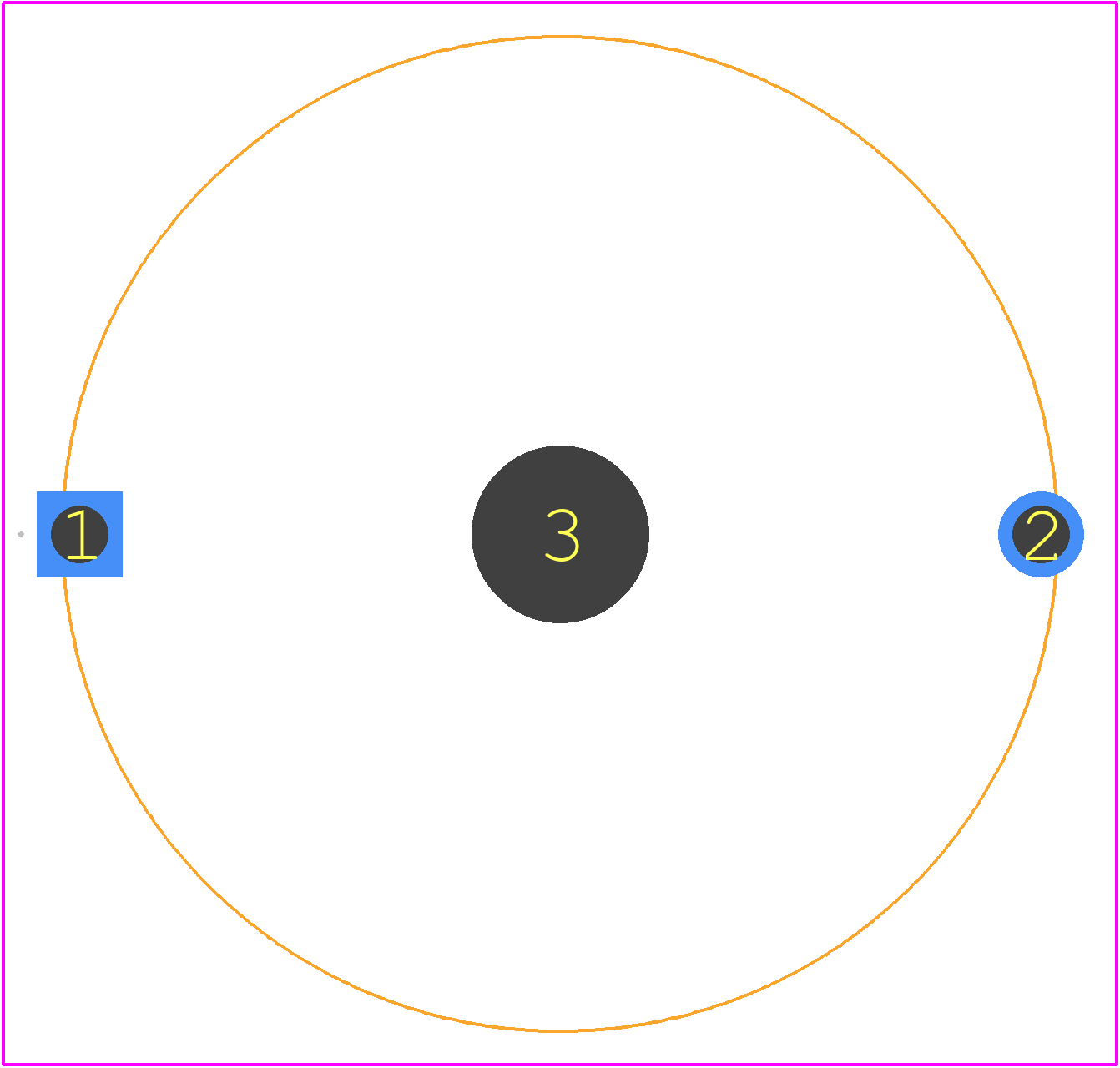

1410524C - Murata Electronics PCB footprint - Other - Other - 1410524C-4
click to zoom
3D Models
1410524C - Murata Electronics - 3D model - Other - 1410524C-4
click to zoom

1410524C Details

  • Manufacturer Part Number:

    1410524C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Construction:

    Bobbin

  • DC Resistance:

    0.277 Ω

  • Inductance-Nom (L):

    1000 µH

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Diameter:

    31.4 mm

  • Package Height:

    21.8 mm

  • Package Length:

    31.4 mm

  • Package Style:

    Radial

  • Package Width:

    29.8 mm

  • Packing Method:

    Bulk

  • Rated Current-Max:

    2.4 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Tolerance:

    10%

1410524C Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 1410524C can be found in the Murata Land Pattern Recommendation document, which provides detailed guidelines for PCB layout and design.
  • To prevent moisture-related issues, it's essential to follow proper storage and handling procedures, such as storing the components in a dry environment, using desiccant packaging, and baking the components before reflow soldering.
  • The maximum reflow temperature for the 1410524C is 260°C, as specified in the datasheet. Exceeding this temperature can cause damage to the component.
  • While the 1410524C is designed to be robust, it's essential to evaluate the component's performance in high-vibration environments through rigorous testing and simulation. Murata provides guidelines for vibration testing in their reliability handbook.
  • To troubleshoot issues with the 1410524C, start by reviewing the datasheet and application notes, then consult Murata's technical support resources, such as their FAQ section and technical documentation. If necessary, contact Murata's support team for further assistance.
