14111213001000 - HARTING

Description: har-flexicon, 12pin male, vertical SMT pcb mount, 6Amps, pitch 2.54mm, 500pc reel

Download 14111213001000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

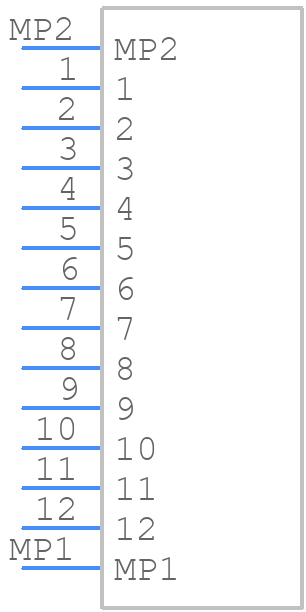

14111213001000 - HARTING - PCB symbol
click to zoom
PCB Footprints
14111213001000 - HARTING PCB footprint - Other - Other - 14111213001000-1
click to zoom
3D Models
14111213001000 - HARTING - 3D model - Other - 14111213001000-1
click to zoom

14111213001000 Details

  • Manufacturer Part Number:

    14111213001000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    6 A

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

14111213001000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 14111213001000 connector is -40°C to 125°C, according to HARTING's specifications.
  • Yes, the 14111213001000 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • The 14111213001000 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult HARTING's documentation and perform necessary testing to ensure the connector meets the specific requirements of your application.
  • The 14111213001000 connector has a mating cycle life of at least 500 cycles, according to HARTING's specifications. This means it can withstand repeated connections and disconnections without compromising its performance.
  • The 14111213001000 connector is designed to be compatible with other HARTING products and components. However, it's essential to verify compatibility with third-party components before integrating them into your design.
