1411954 - Phoenix Contact

Description: SACC-CIP-M12FS-12P SMD SH T - Contact carrier, 12-position, Socket, straight, M12, A-coding, SMD reflow, this item is expected to be lead-free from Q1 2027 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1411954 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1411954 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

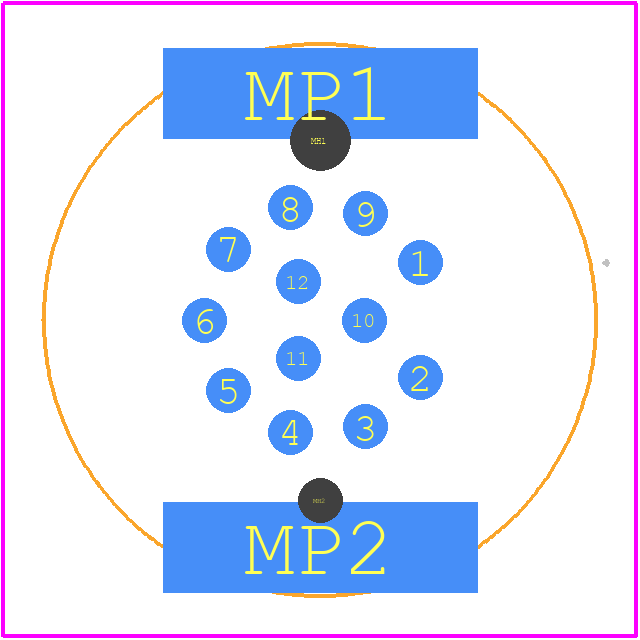

1411954 - Phoenix Contact PCB footprint - Other - Other - 1411954-1
click to zoom
3D Models
1411954 - Phoenix Contact - 3D model - Other - 1411954-1
click to zoom

1411954 Details

  • Manufacturer Part Number:

    1411954

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    IEC-61076-2-101, RATED VOLTAGE: 30V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;EAC;UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    12

1411954 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the Phoenix Contact torque guide for specific recommendations.
  • Yes, the 1411954 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to prevent loosening over time.
  • The 1411954 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and protection from direct sunlight, moisture, and extreme temperatures.
  • While the datasheet specifies a particular wire gauge, it's possible to use a different gauge with some limitations. Consult Phoenix Contact's wire gauge compatibility chart or contact their technical support for guidance.
  • To ensure proper EMI shielding, make sure to use the connector's shielding capabilities in conjunction with a shielded cable and proper grounding. Consult Phoenix Contact's EMI shielding guidelines for more information.
