1411961 - Phoenix Contact

Description: SACC-CIP-M12MS-17P SMD SH T - Contact carrier, 17-position, Pin, straight, M12, A-coding, SMD reflow, this item is expected to be lead-free from Q1 2027 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1411961 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1411961 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

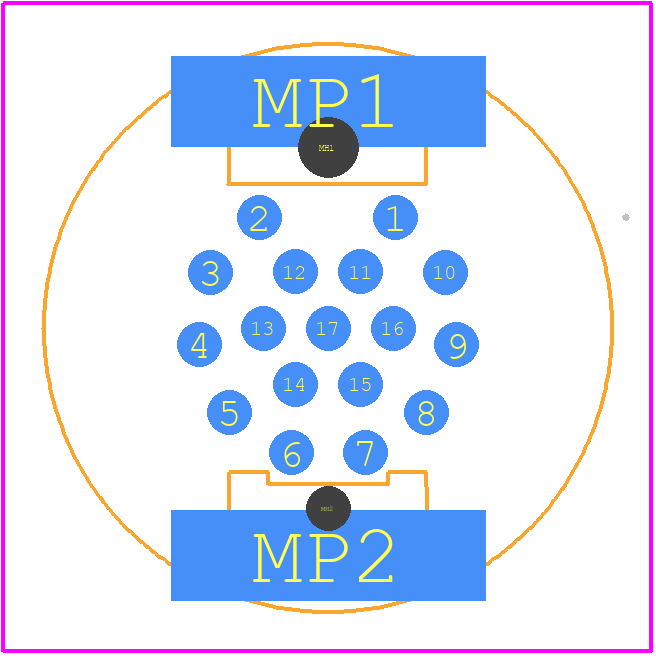

1411961 - Phoenix Contact PCB footprint - Other - Other - 1411961-2
click to zoom
3D Models
1411961 - Phoenix Contact - 3D model - Other - 1411961-2
click to zoom

1411961 Details

  • Manufacturer Part Number:

    1411961

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    IEC-61076-2-101, RATED VOLTAGE: 30V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;EAC;UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    17

1411961 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact's general technical guidelines.
  • Yes, the 1411961 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact's technical support for specific application guidance.
  • The 1411961 connector has a protection rating of IP67, making it suitable for outdoor use and exposure to dust and water. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, it's crucial to consult with Phoenix Contact's technical support to ensure the connector's performance and reliability are not compromised.
  • Yes, as with any electrical connector, it's essential to follow proper safety guidelines, such as ensuring proper insulation, avoiding over-tightening, and meeting relevant industry standards (e.g., IEC 61076-2-101).
