1411962 - Phoenix Contact

Description: SACC-CIP-M12MST-4P SMD SH T - Contact carrier, Power, 4-position, Pin, straight, M12, T-coding, SMD reflow, this item is expected to be lead-free from Q1 2027 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1411962 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1411962 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

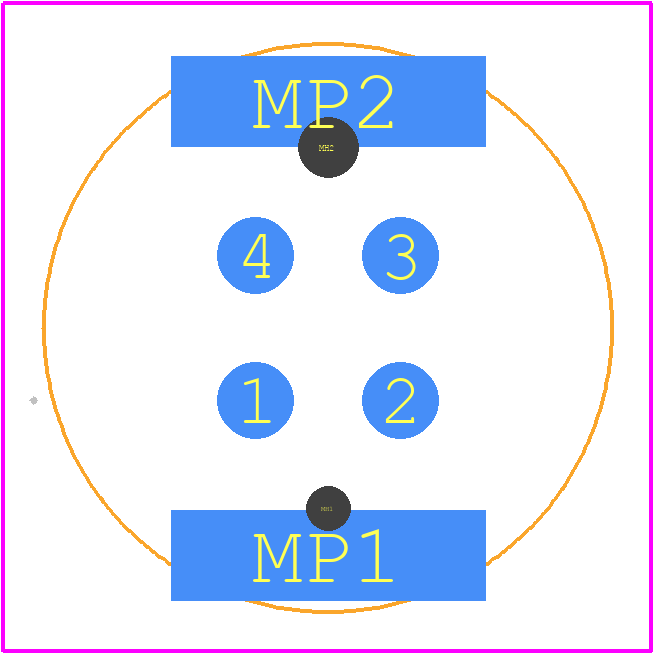

1411962 - Phoenix Contact PCB footprint - Other - Other - 1411962
click to zoom
3D Models
1411962 - Phoenix Contact - 3D model - Other - 1411962
click to zoom

1411962 Details

  • Manufacturer Part Number:

    1411962

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    IEC-61076-2-111, RATED VOLTAGE: 63V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    4

1411962 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1411962 connector is designed to withstand high vibrations and is suitable for use in industrial and transportation applications.
  • The connector is resistant to many common chemicals and cleaning agents, but it's recommended to check the compatibility of specific substances with the connector's materials.
  • The 1411962 connector has an IP67 rating, making it suitable for use in outdoor and wet environments, but it's essential to ensure proper sealing and installation.
  • The operating temperature range for the 1411962 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
