1411974 - Phoenix Contact

Description: SACC-CI-M12FS-4P SMD R32 - Contact carrier, 4-position, Socket, straight, M12, A-coding, SMD reflow, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Download 1411974 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1411974 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

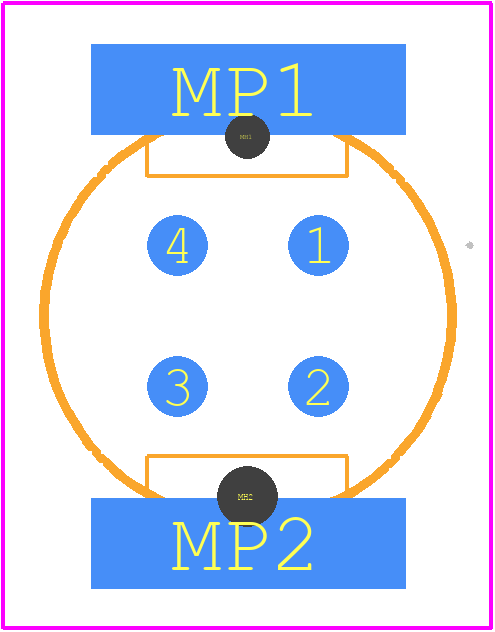

1411974 - Phoenix Contact PCB footprint - Other - Other - 1411974
click to zoom
3D Models
1411974 - Phoenix Contact - 3D model - Other - 1411974
click to zoom

1411974 Details

  • Manufacturer Part Number:

    1411974

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    APPROVAL: EAC, RATED CURRENT(SIGNAL):4A; RATED VOLTAGE:250V

  • Backshell Type:

    SOLID

  • Body Depth:

    0.709 inch

  • Body Diameter:

    0.402 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;IEC;UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    4

1411974 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and material to ensure the correct torque value.
  • Yes, the 1411974 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and screwing to the PCB to maintain the connector's integrity.
  • The 1411974 connector is designed for industrial applications and can operate in temperatures ranging from -40°C to 125°C. However, it's essential to consult the datasheet and Phoenix Contact's guidelines for specific environmental requirements.
  • Yes, the 1411974 connector is designed to be compatible with other Phoenix Contact products, including PCB terminals and connectors. However, it's essential to ensure compatibility and consult the specific product datasheets.
  • The maximum current rating for the 1411974 connector is 12 A per pin. However, it's essential to consult the specific application and PCB design to ensure the connector is used within its rated specifications.
