1411978 - Phoenix Contact

Description: SACC-CI-M12FS-8P SMD R32 - Contact carrier, 8-position, Socket, straight, M12, A-coding, SMD reflow, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Download 1411978 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1411978 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

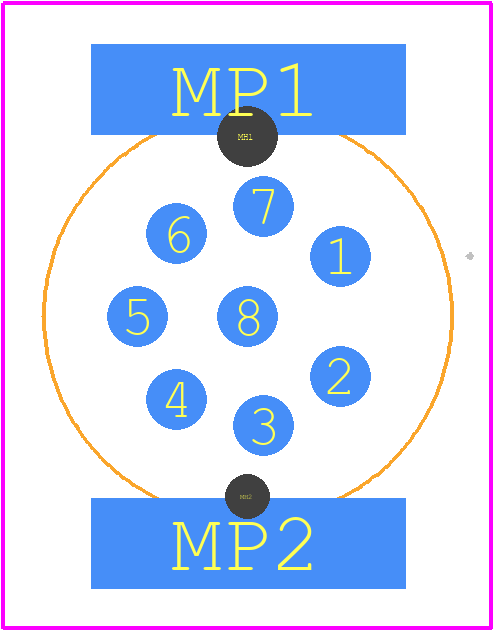

1411978 - Phoenix Contact PCB footprint - Other - Other - 1411978
click to zoom
3D Models
1411978 - Phoenix Contact - 3D model - Other - 1411978
click to zoom

1411978 Details

  • Manufacturer Part Number:

    1411978

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    IEC-61076-2-101, RATED VOLTAGE: 30V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;EAC;UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    8

1411978 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1411978 is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1411978 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals.
  • The maximum current rating of the 1411978 is 32 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1411978 is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration. It meets the requirements of IP67 and UL94-V0.
  • No, the 1411978 is not designed for use in explosive atmospheres and does not meet the requirements of ATEX or IECEx.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1411978 Overview

Use the download button to access the 1411978 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14119, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
