Part Image

1411979 - Phoenix Contact

Description: SACC-CI-M12FS-12P SMD R32 - Contact carrier, 12-position, Socket, straight, M12, A-coding, SMD reflow, this item is expected to be lead-free from Q1 2027 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1411979 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1411979 - Phoenix Contact - PCB symbol
click to zoom

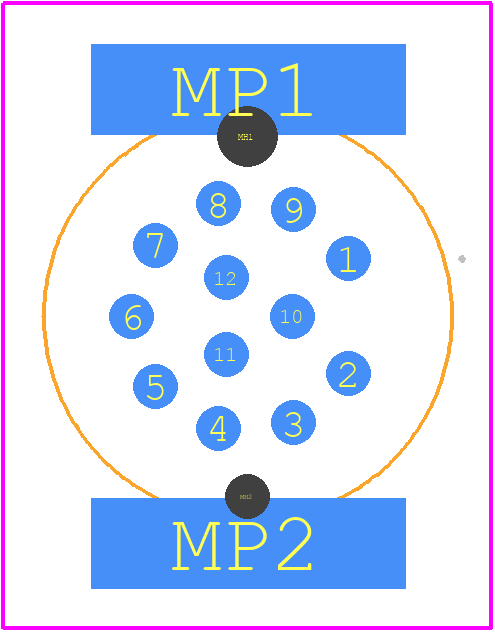

PCB Footprints
1411979 - Phoenix Contact PCB footprint - Other - Other - 1411979
click to zoom
3D Models
1411979 - Phoenix Contact - 3D model - Other - 1411979
click to zoom

1411979 Details

  • Manufacturer Part Number:

    1411979

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARDS: IEC-61076-2-101

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    12

1411979 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1411979 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1411979 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, making it easy to integrate into existing systems.
  • The maximum current rating for the 1411979 is 12 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1411979 is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration, making it suitable for use in industrial and automation applications.
  • The 1411979 has an IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in applications where exposure to moisture is a concern.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1411979 Overview

Use the download button to access the 1411979 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14119, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
