1411984 - Phoenix Contact

Description: SACC-CI-M12MS-5P SMD R32 - Contact carrier, 5-position, Pin, straight, M12, A-coding, SMD reflow, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Download 1411984 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1411984 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

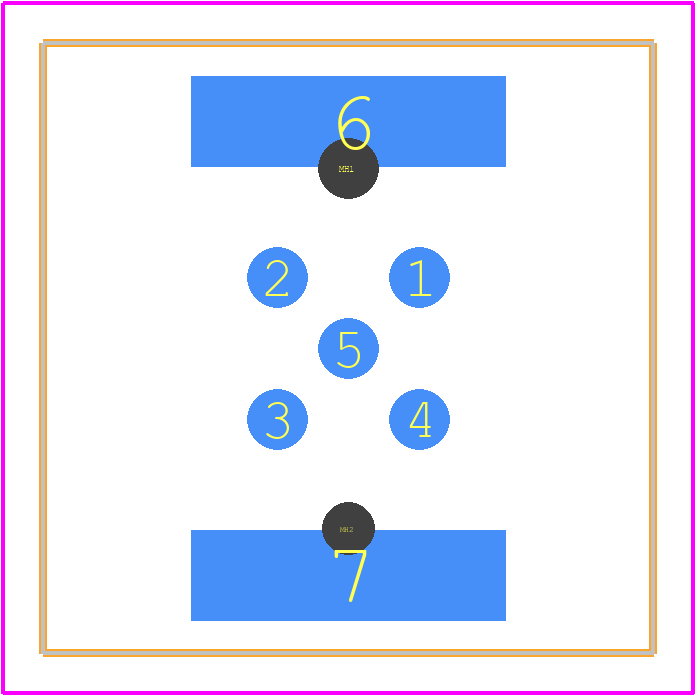

1411984 - Phoenix Contact PCB footprint - Other - Other - 1411984
click to zoom
3D Models
1411984 - Phoenix Contact - 3D model - Other - 1411984
click to zoom

1411984 Details

  • Manufacturer Part Number:

    1411984

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    IEC-61076-2-101, RATED VOLTAGE: 60V

  • Backshell Type:

    SOLID

  • Body Depth:

    0.843 inch

  • Body Diameter:

    0.372 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;EAC;UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    5

1411984 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, but it's essential to consult the specific panel manufacturer's guidelines as well.
  • Yes, the 1411984 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure wiring to prevent damage.
  • The 1411984 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and protection of the connector and wiring.
  • Yes, the 1411984 connector is designed to be compatible with other Phoenix Contact products, such as their terminal blocks and connectors. However, compatibility with third-party components should be verified before use.
  • The 1411984 connector is rated for operation in temperatures ranging from -40°C to 125°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable operation.
