Part Image

1411987 - Phoenix Contact

Description: SACC-CI-M12MS-12P SMD R32 - Contact carrier, 12-position, Pin, straight, M12, A-coding, SMD reflow, this item is expected to be lead-free from Q1 2027 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1411987 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1411987 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

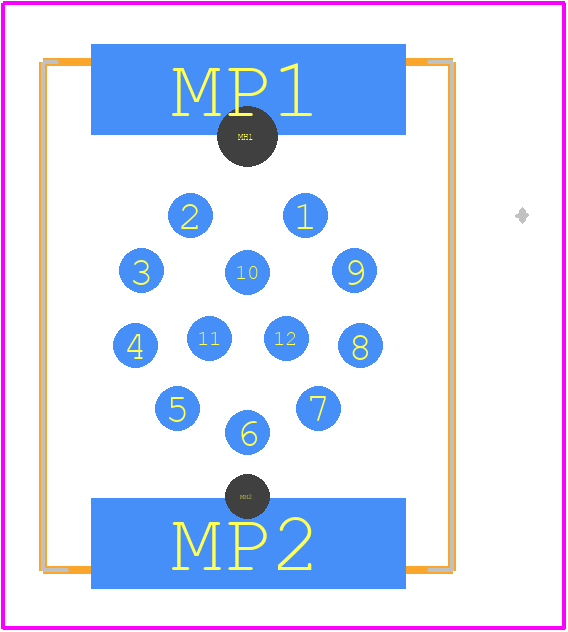

1411987 - Phoenix Contact PCB footprint - Other - Other - 1411987-3
click to zoom
3D Models
1411987 - Phoenix Contact - 3D model - Other - 1411987-3
click to zoom

1411987 Details

  • Manufacturer Part Number:

    1411987

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    9

  • Additional Feature:

    IEC-61076-2-101, RATED CURRENT: 1.5A; RATED VOLTAGE: 30V

  • Backshell Type:

    SOLID

  • Body Depth:

    0.843 inch

  • Body Diameter:

    0.372 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;EAC;UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    12

1411987 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting and to avoid damage to the PCB or the connector.
  • Yes, the 1411987 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and secure fastening to the PCB to maintain the connector's integrity in high-vibration environments.
  • The 1411987 connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidities up to 95%. However, it's essential to consult the specific application requirements and environmental conditions to ensure the connector's reliability and performance.
  • Yes, the 1411987 connector is designed to be compatible with other Phoenix Contact products and accessories, such as PCB connectors, cable connectors, and housings. However, it's essential to consult the specific product documentation and compatibility charts to ensure seamless integration.
  • The maximum current rating for the 1411987 connector is 12 A per contact. However, it's crucial to consult the specific application requirements and ensure that the connector is used within its rated specifications to avoid overheating or damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1411987 Overview

Use the download button to access the 1411987 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14119, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
