1411993 Frequently Asked Questions (FAQs)

• What is the recommended torque for screwing the connector onto a PCB?
  The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the Phoenix Contact application notes for more detailed guidance.
• Can I use this connector in a high-vibration environment?
  Yes, the 1411993 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to prevent loosening or damage.
• Is the connector suitable for use in harsh environments, such as those with high humidity or extreme temperatures?
  The 1411993 connector is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consider additional protection measures, such as conformal coating or sealing, for extreme environmental conditions.
• Can I use this connector with a wire gauge larger than AWG 24?
  No, the 1411993 connector is designed for use with wire gauges AWG 24 to AWG 30. Using a larger wire gauge may compromise the connector's reliability and performance.

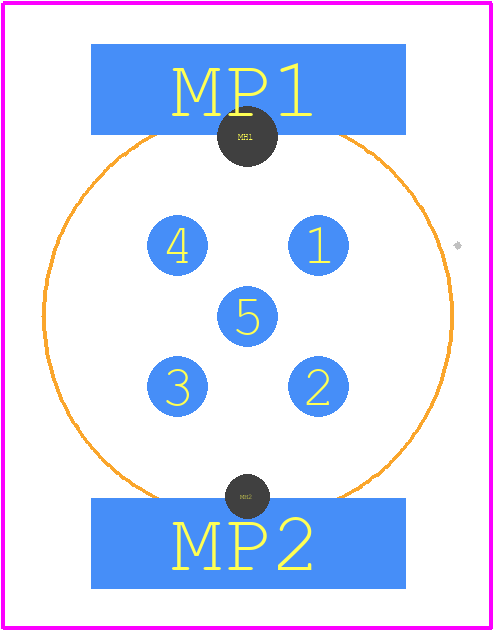

• Are there any specific PCB layout considerations I should be aware of when using this connector?
  Yes, it's essential to ensure a minimum clearance of 1.5 mm between the connector and any adjacent components or PCB features to prevent interference or damage. Additionally, the PCB should be designed to accommodate the connector's mounting holes and screwing pattern.
