14120917001000 - HARTING

Description: har-flexicon, 9pin male, vertical pcb mount (THR/SMC), 15Amps, pitch 5.08mm

Download 14120917001000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
14120917001000 - HARTING - PCB symbol
click to zoom
PCB Footprints

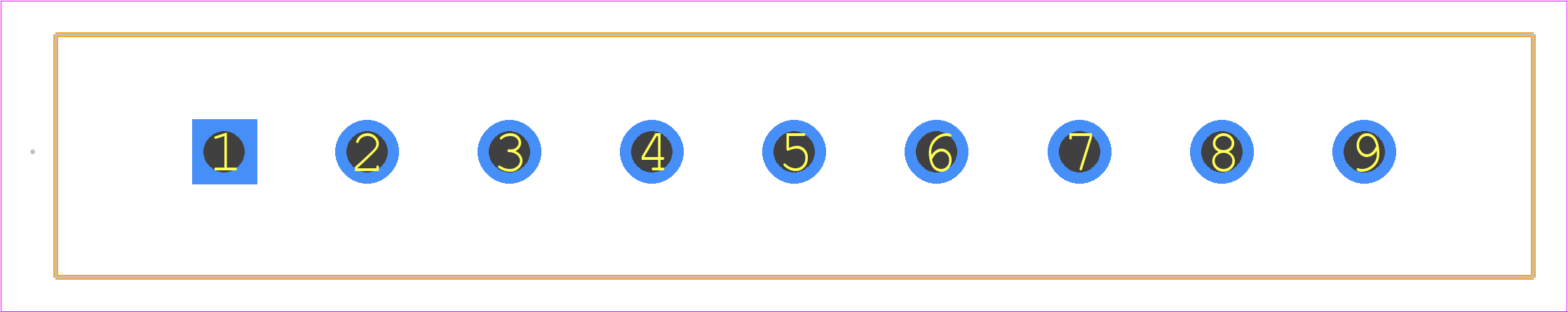

14120917001000 - HARTING PCB footprint - Other - Other - 14120917001000
click to zoom
3D Models
14120917001000 - HARTING - 3D model - Other - 14120917001000
click to zoom

14120917001000 Details

  • Manufacturer Part Number:

    14120917001000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    HARTING Technology Group

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

14120917001000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks on the 14120917001000 connector is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 14120917001000 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10 g according to IEC 61373 Cat. 2.
  • Yes, the 14120917001000 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity range of up to 95% RH.
  • The mating cycle life of the 14120917001000 connector is up to 500 mating cycles, depending on the application and environmental conditions.
  • Yes, the 14120917001000 connector is part of the HARTING Han series and is compatible with other Han series connectors, but compatibility should be verified based on specific application requirements.
