14121017001000 - HARTING

Description: har-flexicon, 10pin male, vertical pcb mount (THR/SMC), 15Amps, pitch 5.08mm

Download 14121017001000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
14121017001000 - HARTING - PCB symbol
click to zoom
PCB Footprints

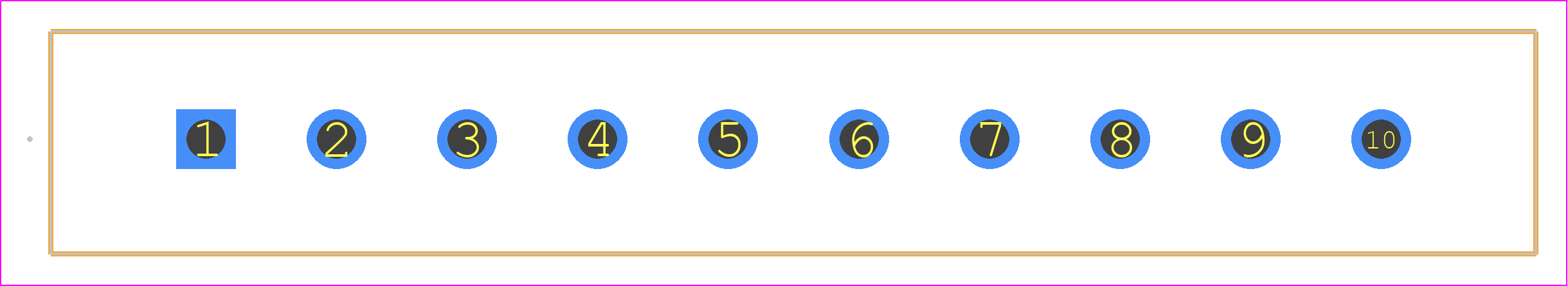

14121017001000 - HARTING PCB footprint - Other - Other - 14121017001000
click to zoom
3D Models
14121017001000 - HARTING - 3D model - Other - 14121017001000
click to zoom

14121017001000 Details

  • Manufacturer Part Number:

    14121017001000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    HARTING Technology Group

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

14121017001000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 14121017001000 connector is -40°C to 125°C, as per the IEC 61984 standard.
  • Yes, the 14121017001000 connector is designed to withstand high vibrations and is suitable for applications with intense mechanical stress, such as in industrial automation, transportation, and aerospace.
  • Yes, the 14121017001000 connector is designed to be resistant to chemicals and moisture, and can operate in harsh environments. However, it's essential to follow the recommended cleaning and maintenance procedures to ensure optimal performance.
  • The mating cycle life of the 14121017001000 connector is up to 500 mating cycles, depending on the application and environmental conditions.
  • Yes, the 14121017001000 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for easy integration into existing systems.
