14121017006000 - HARTING

Description: har-flexicon, 10pin male, horizontal pcb mount (THR/SMC), with screw flange, 15Amps, pitch 5.08mm

Download 14121017006000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
14121017006000 - HARTING - PCB symbol
click to zoom
PCB Footprints

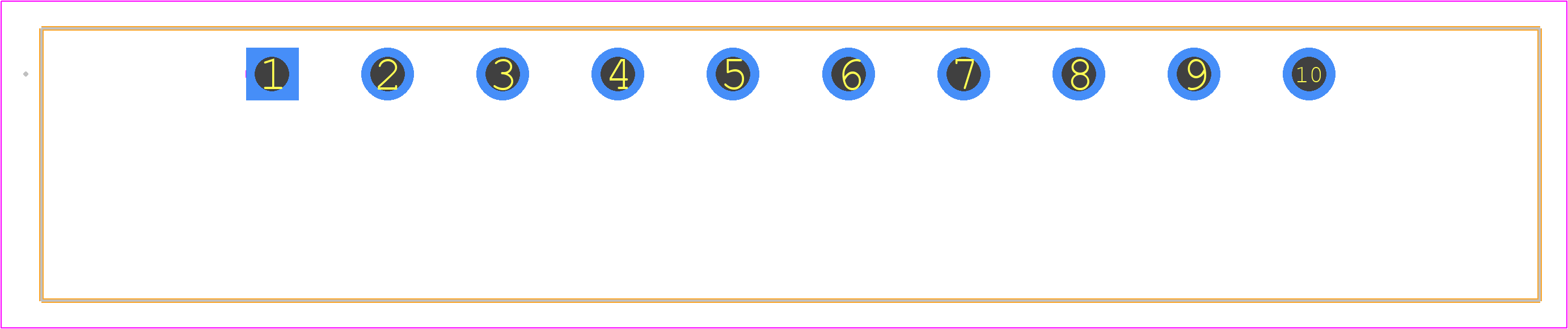

14121017006000 - HARTING PCB footprint - Other - Other - 14121017006000
click to zoom
3D Models
14121017006000 - HARTING - 3D model - Other - 14121017006000
click to zoom

14121017006000 Details

  • Manufacturer Part Number:

    14121017006000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    HARTING Technology Group

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

14121017006000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks on the 14121017006000 connector is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 14121017006000 connector is designed to withstand high-vibration environments, with a tested vibration resistance of up to 10g (according to IEC 61373 Cat. 2).
  • Yes, the 14121017006000 connector is designed for outdoor use, with a IP67 rating that provides protection against dust and water ingress.
  • The 14121017006000 connector is rated for operation in temperatures ranging from -40°C to +125°C, making it suitable for high-temperature applications.
  • The 14121017006000 connector has a mating cycle life of at least 500 cycles, as specified in the HARTING datasheet.
