1412235 - Phoenix Contact

Description: SACC-CIP-M8FS-3P SMD SH T - Contact carrier, 3-position, Socket, straight, M8, A-coding, SMD reflow, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Download 1412235 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1412235 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

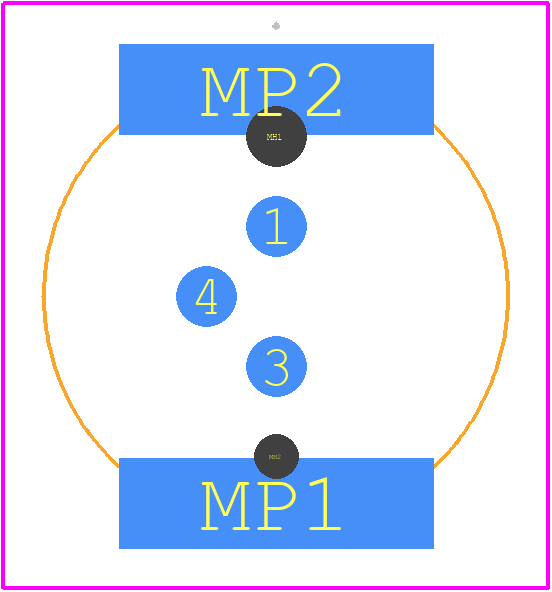

1412235 - Phoenix Contact PCB footprint - Other - Other - 1412235
click to zoom
3D Models
1412235 - Phoenix Contact - 3D model - Other - 1412235
click to zoom

1412235 Details

  • Manufacturer Part Number:

    1412235

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    IEC-61076-2-104, RATED VOLTAGE: 48VAC

  • Backshell Type:

    SOLID

  • Body Depth:

    1.764 inch

  • Body Diameter:

    0.457 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;EAC;UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    3

1412235 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1412235 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific requirements of your application.
  • The 1412235 connector has a IP20 rating, which means it's not suitable for outdoor use or exposure to water or moisture. If you need a connector for outdoor use, consider using a connector with a higher IP rating, such as IP67 or IP69K.
  • It's not recommended to use the 1412235 connector with aluminum wires, as they can cause corrosion and reduce the connector's lifespan. Instead, use copper or copper-alloy wires, which are compatible with the connector's materials.
