1412248 - Phoenix Contact

Description: SACC-CI-M8MS-3P SMD R32 - Contact carrier, 3-position, Pin, straight, M8, A-coding, SMD reflow, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Download 1412248 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1412248 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

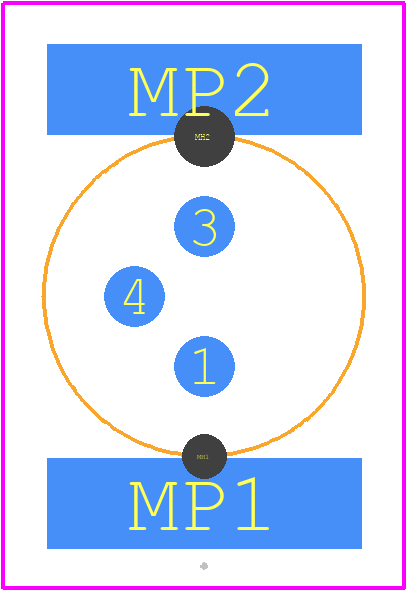

1412248 - Phoenix Contact PCB footprint - Other - Other - 1412248-4
click to zoom
3D Models
1412248 - Phoenix Contact - 3D model - Other - 1412248-4
click to zoom

1412248 Details

  • Manufacturer Part Number:

    1412248

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    IEC-61076-2-104, RATED VOLTAGE: 50VAC

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;EAC;UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    3

1412248 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for industrial and transportation applications.
  • Yes, the connector is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH, making it suitable for use in harsh environments.
  • The maximum current rating is 12 A per contact, depending on the specific application and wire size used.
  • Yes, the connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1412248 Overview

Use the download button to access the 1412248 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14122, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
