1412249 - Phoenix Contact

Description: SACC-CI-M8MS-4P SMD R32 - Contact carrier, 4-position, Pin, straight, M8, A-coding, SMD reflow, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Download 1412249 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1412249 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

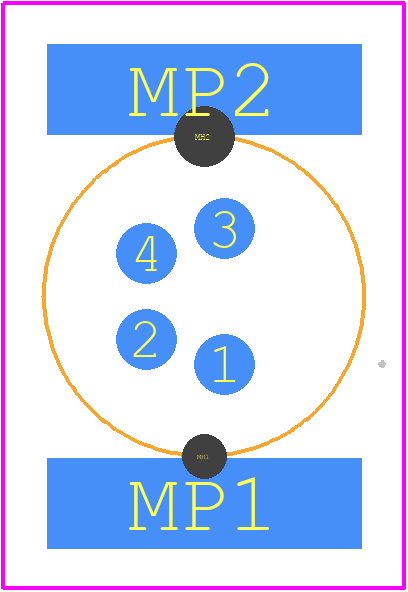

1412249 - Phoenix Contact PCB footprint - Other - Other - 1412249
click to zoom
3D Models
1412249 - Phoenix Contact - 3D model - Other - 1412249
click to zoom

1412249 Details

  • Manufacturer Part Number:

    1412249

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    IEC-61076-2-104, RATED VOLTAGE: 48VAC

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;EAC;UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    4

1412249 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1412249 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • Yes, the 1412249 connector has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • Yes, the 1412249 connector is designed to accept stranded wires with a wire size range of 0.5 mm² to 2.5 mm².
  • The operating temperature range of the 1412249 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
