1413446 - Phoenix Contact

Description: SACC-CI-M12FSX-8CON-L180 TOR32 - Contact carrier, Ethernet CAT6<sub>A</sub>, 8-position, Socket, straight, M12, X-coding, THR solder connection, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb &lt; 0.1%), a lead-free alternative is possible on request in advance

Download 1413446 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1413446 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

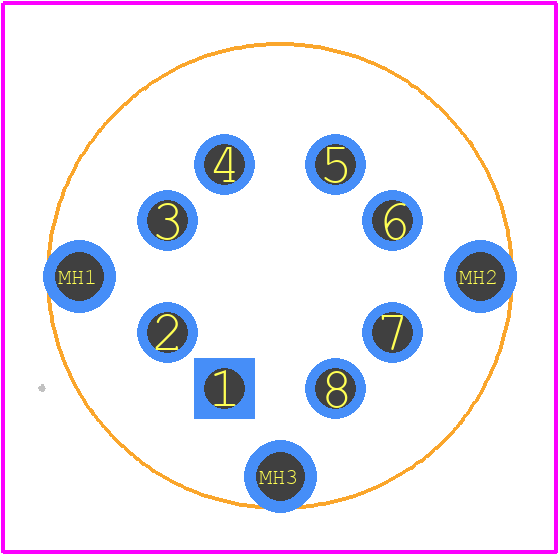

1413446 - Phoenix Contact PCB footprint - Other - Other - 1413446-2
click to zoom
3D Models
1413446 - Phoenix Contact - 3D model - Other - 1413446-2
click to zoom

1413446 Details

  • Manufacturer Part Number:

    1413446

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARD: IEC 61076-2-109

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    POLYPHTALAMIDE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

1413446 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) to ensure a secure connection.
  • Yes, the 1413446 connector is designed to withstand vibrations up to 10 g (according to IEC 60068-2-6) and is suitable for use in industrial and transportation applications.
  • Yes, the 1413446 connector has a protection rating of IP67, making it suitable for outdoor use and resistant to dust and water ingress.
  • While it's technically possible, it's not recommended to use a wire gauge that's not specified in the datasheet. Using a different gauge may affect the connector's performance, reliability, and safety.
  • To ensure a reliable connection, make sure to follow the recommended assembly instructions, use the correct wire gauge, and apply the recommended torque when screwing the connector onto a panel.
