1415514C - Murata Electronics

1415514C Frequently Asked Questions (FAQs)

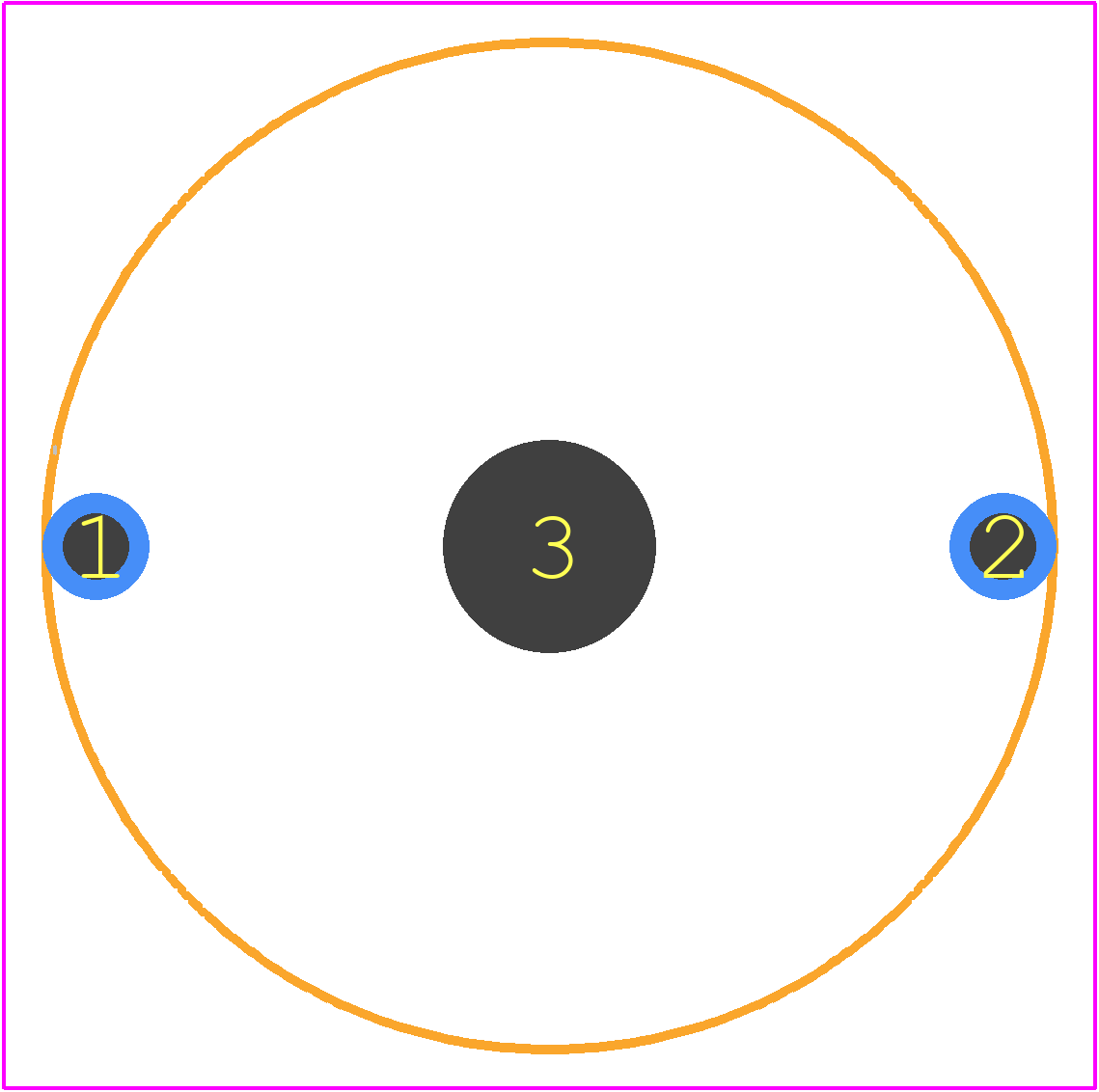

• What is the recommended land pattern for the 1415514C?
  Murata recommends a land pattern with a pad size of 1.3mm x 0.8mm, and a spacing of 0.5mm between pads. Refer to the Murata Land Pattern Guidelines document for more information.
• Can I use the 1415514C in a high-temperature environment?
  The 1415514C is rated for operation up to 125°C. However, it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments.
• How do I handle the 1415514C during PCB assembly to prevent damage?
  Handle the component by the edges, avoid touching the pads, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Follow standard PCB assembly and handling procedures.
• What is the recommended soldering profile for the 1415514C?
  Murata recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a cooling rate of 4°C/s. Refer to the Murata Soldering Guidelines document for more information.
• Can I use the 1415514C in a high-vibration environment?
  The 1415514C is designed to withstand vibrations up to 10G. However, it's essential to consider the specific vibration requirements of your application and ensure the component is properly secured to the PCB.
