Part Image

1415900-2 - TE Connectivity

Description: Body Features: Product Weight 14 G | Insulation Special Features Tracking Index of Relay Base PTI250 | Product Weight .494 OZ | Contact Features: Contact Current Class 16 AMP | Contact Material AgNi90/10 | Contact Number of Poles 1 | Contact Current Rating (Max) 16 AMP | Contact Arrangement 1 Form C (CO) | Contact Special Features Bifurcated/Twin Contacts | Dimensions: Product Length 29 MM | Product Width .5 INCH | Product Length 1.14 INCH | Product Width 12.7 MM | Product Height 16 MM | Height Class (Mecha

Download 1415900-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

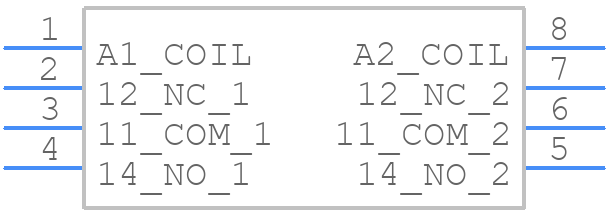

Symbol
1415900-2 - TE Connectivity - PCB symbol
click to zoom

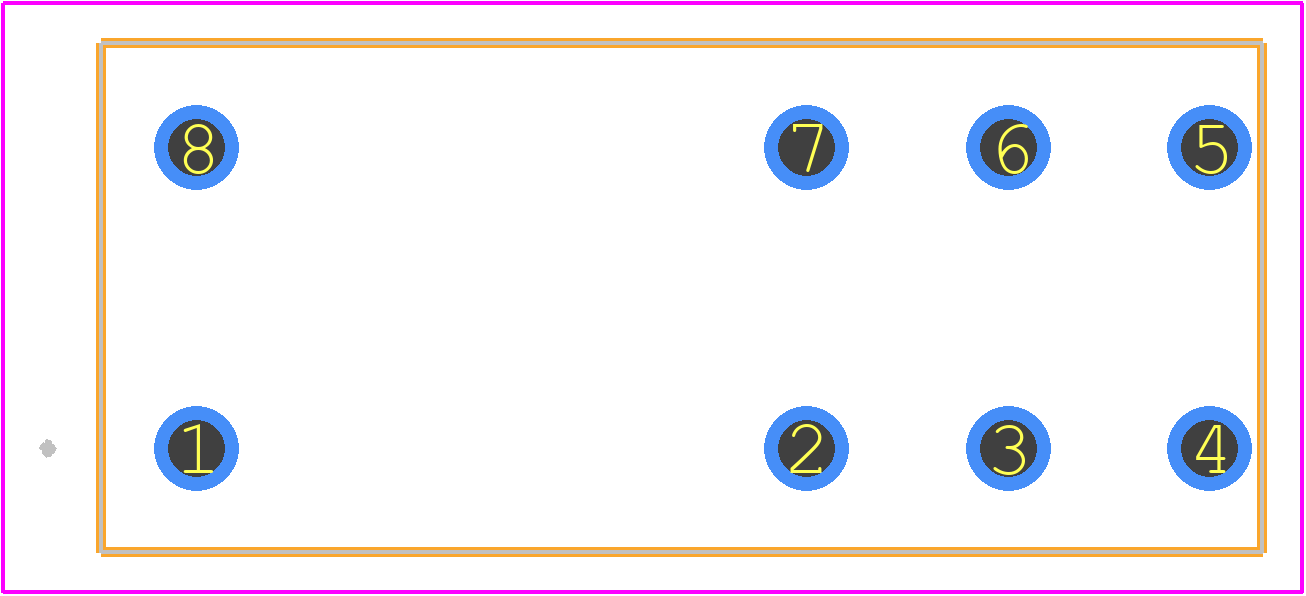

PCB Footprints
1415900-2 - TE Connectivity PCB footprint - Other - Other - 1415900-2 (RT1)
click to zoom
3D Models
1415900-2 - TE Connectivity - 3D model - Other - 1415900-2 (RT1)
click to zoom

1415900-2 Details

  • Manufacturer Part Number:

    1415900-2

  • Brand Name:

    Schrack

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Body Breadth:

    12.7 mm

  • Body Height:

    15.7 mm

  • Body Length or Diameter:

    29 mm

  • Coil Current(DC)-Max:

    0.033 A

  • Coil Operate Voltage(DC):

    8.4 V

  • Coil Power:

    400 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    360 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil Voltage-Nom:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Power Rating R Load:

    4000VA@400VAC

  • Contact (AC) Max Rating R Load:

    16A@400VAC

  • Contact Current(AC)-Max:

    16 A

  • Contact Current(DC)-Max:

    16 A

  • Contact Voltage(AC)-Max:

    400 V

  • Contact/Output Supply Type:

    AC

  • Dielectric Strength Between Coil and Contacts:

    5000 Vrms

  • Dielectric Strength Between Open Contacts:

    1000 Vrms

  • Electrical Life:

    10000000 Cycle(s)

  • End Contact Material:

    SILVER NICKEL

  • Input Switching Control Type:

    Random

  • Mounting Feature:

    PANEL MOUNT

  • Number of Terminals:

    5

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    29mm x 12.7mm x 16mm

  • Reference Standard:

    UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    6 ms

  • Sealing:

    RT2

  • Surface Mount:

    NO

  • Terminal Length:

    0.003599187198374397 inch

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    14 g

1415900-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1415900-2 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1415900-2 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for prolonged exposure to direct sunlight, high temperatures, or corrosive substances. If you need to use the connector in harsh environments, consider additional protection measures or consult with TE Connectivity for customized solutions.
  • While the datasheet recommends using AWG 20-24 wires, you can use other wire sizes with caution. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. Consult with TE Connectivity or a qualified engineer to determine the suitability of alternative wire sizes for your specific application.
  • Yes, to ensure reliable connections and prevent damage to the connector or PCB, follow these layout guidelines: maintain a minimum clearance of 1.5 mm between the connector and nearby components, use a solder mask to prevent solder bridging, and ensure the PCB is designed to accommodate the connector's footprint and mounting requirements.
