1420817 - Phoenix Contact

Description: SACC-CI-M12MSL-4FE-L180 THR T - Contact carrier, Power, 5-position, Pin, straight, M12, L-coding, THR solder connection, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Download 1420817 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1420817 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

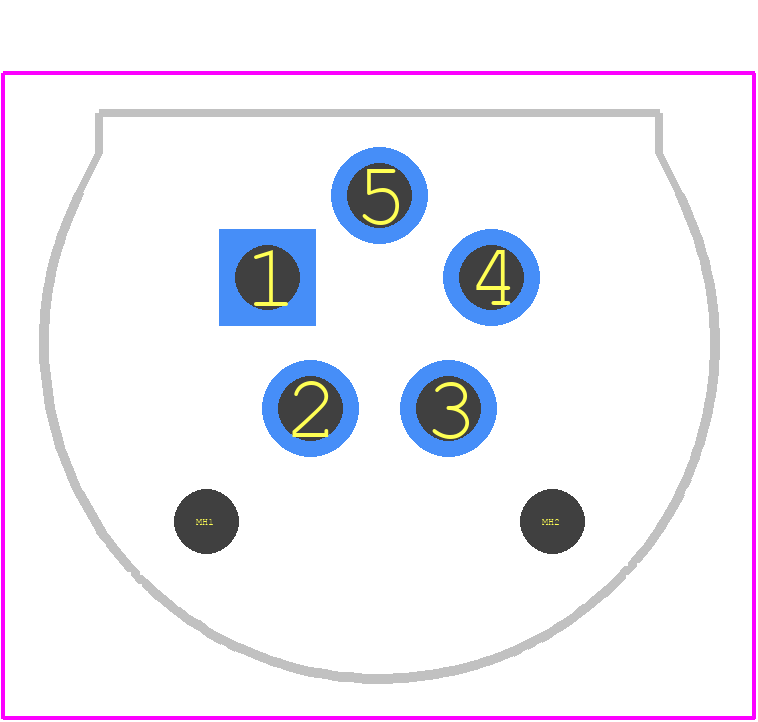

1420817 - Phoenix Contact PCB footprint - Other - Other - 1420817
click to zoom
3D Models
1420817 - Phoenix Contact - 3D model - Other - 1420817
click to zoom

1420817 Details

  • Manufacturer Part Number:

    1420817

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

1420817 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1420817 is -40°C to 125°C.
  • Yes, the 1420817 is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • The 1420817 is not certified for use in hazardous locations. If you need a product for hazardous locations, you should consider a different product or consult with Phoenix Contact for a custom solution.
  • The maximum wire size that can be connected to the 1420817 is 2.5 mm² (AWG 14).
  • Yes, the 1420817 is RoHS and REACH compliant, making it suitable for use in the European Union and other regions with similar regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1420817 Overview

Use the download button to access the 1420817 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14208, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
