1422514C footprint, schematic symbol and 3D model by Murata Electronics

Symbol

click to zoom

PCB Footprints

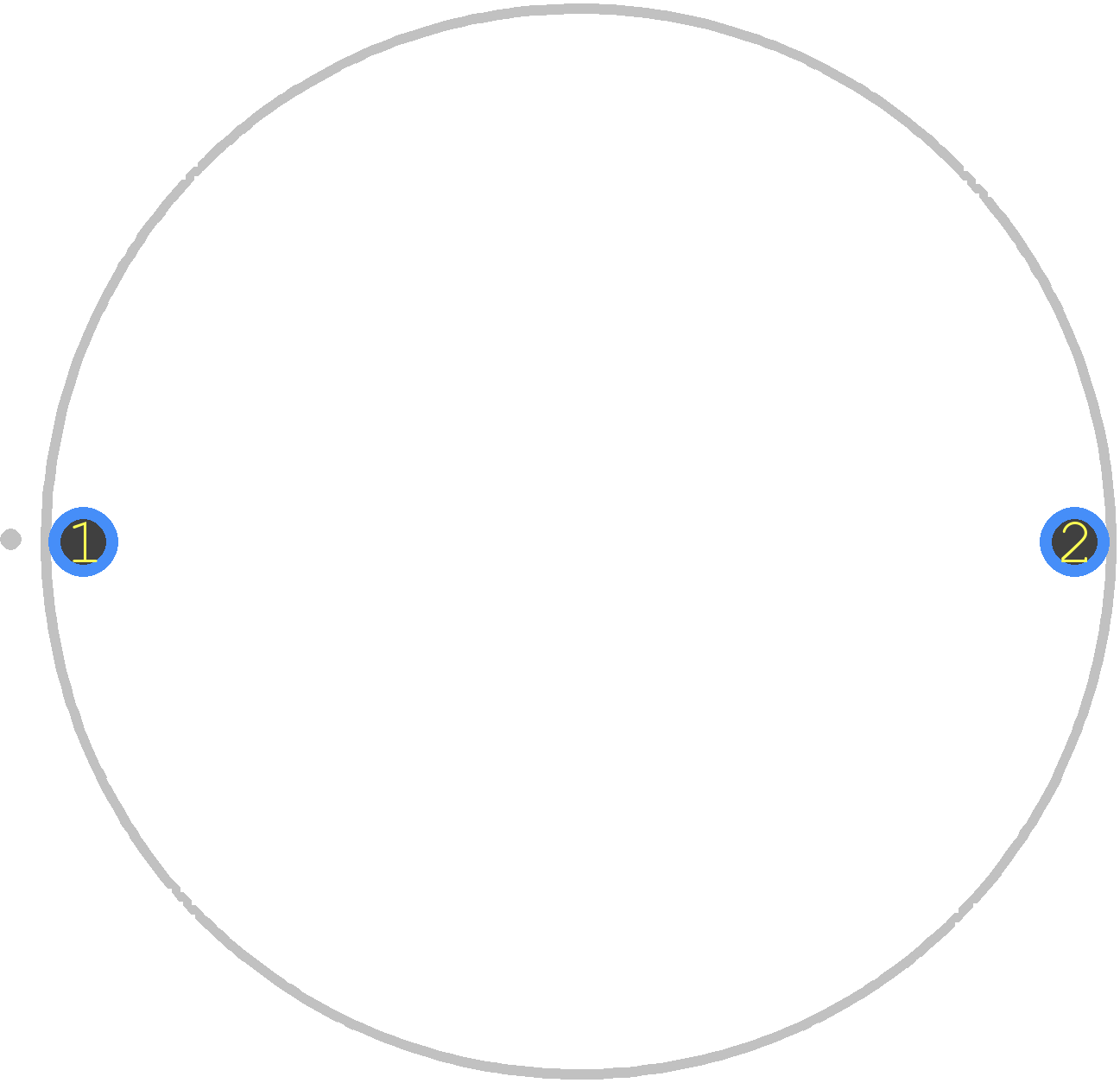

1422514C - Murata Electronics PCB footprint - Other - Other - 1422514C

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1422514C
Part Number 1422514C
Manufacturer Murata Electronics
Pin Count 2
Part Category Inductor
Package Category Other
Footprint Name Other - 1422514C
Released Date Jun 6, 2017
Last Modified Date Jan 3, 2025 3:41 PM UTC
Pinout / Pin List Click Here (Member Only)

1422514C Details

Manufacturer Part Number:
1422514C
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
RADIAL LEADED
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Factory Lead Time:
8 Weeks
Manufacturer:
Murata Manufacturing Co Ltd
YTEOL:
7
Construction:
Bobbin
DC Resistance:
0.622 Ω
Inductance-Nom (L):
2200 µH
Inductor Application:
POWER INDUCTOR
Inductor Type:
GENERAL PURPOSE INDUCTOR
JESD-609 Code:
e3
Lead Diameter:
0.67 mm
Lead Length:
10 mm
Lead Spacing:
28.7 mm
Number of Functions:
1
Number of Terminals:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Height:
21.8 mm
Package Length:
31.1 mm
Package Style:
Radial
Package Width:
29.8 mm
Packing Method:
BULK
Rated Current-Max:
1.4 A
Self Resonance Frequency:
0.6 MHz
Shape/Size Description:
CYLINDRICAL PACKAGE
Shielded:
NO
Surface Mount:
NO
Terminal Finish:
Pure Tin (Sn)
Terminal Placement:
RADIAL
Terminal Shape:
WIRE
Test Frequency:
0.001 MHz
Tolerance:
10%

1422514C Frequently Asked Questions (FAQs)

The recommended land pattern for the 1422514C can be found in the Murata Land Pattern Recommendation document, which provides detailed guidelines for PCB layout and design.
To prevent moisture-related issues, it's essential to follow proper storage and handling procedures, such as storing the components in a dry environment, using desiccant packaging, and baking the components before reflow soldering.
The maximum reflow temperature for the 1422514C is 260°C, as specified in the datasheet. Exceeding this temperature can cause damage to the component.
While the 1422514C is designed to be robust, it's essential to evaluate its performance in high-vibration environments. Murata provides vibration testing data, and it's recommended to consult with their application engineers for specific guidance.
To troubleshoot issues with the 1422514C, start by reviewing the datasheet and application notes, then consult with Murata's technical support team or a qualified engineer. Common issues include incorrect PCB layout, inadequate soldering, or component damage during handling.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

1422514C Overview

Use the download button to access the 1422514C schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 14225, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
