1422604C - Murata Electronics

1422604C Frequently Asked Questions (FAQs)

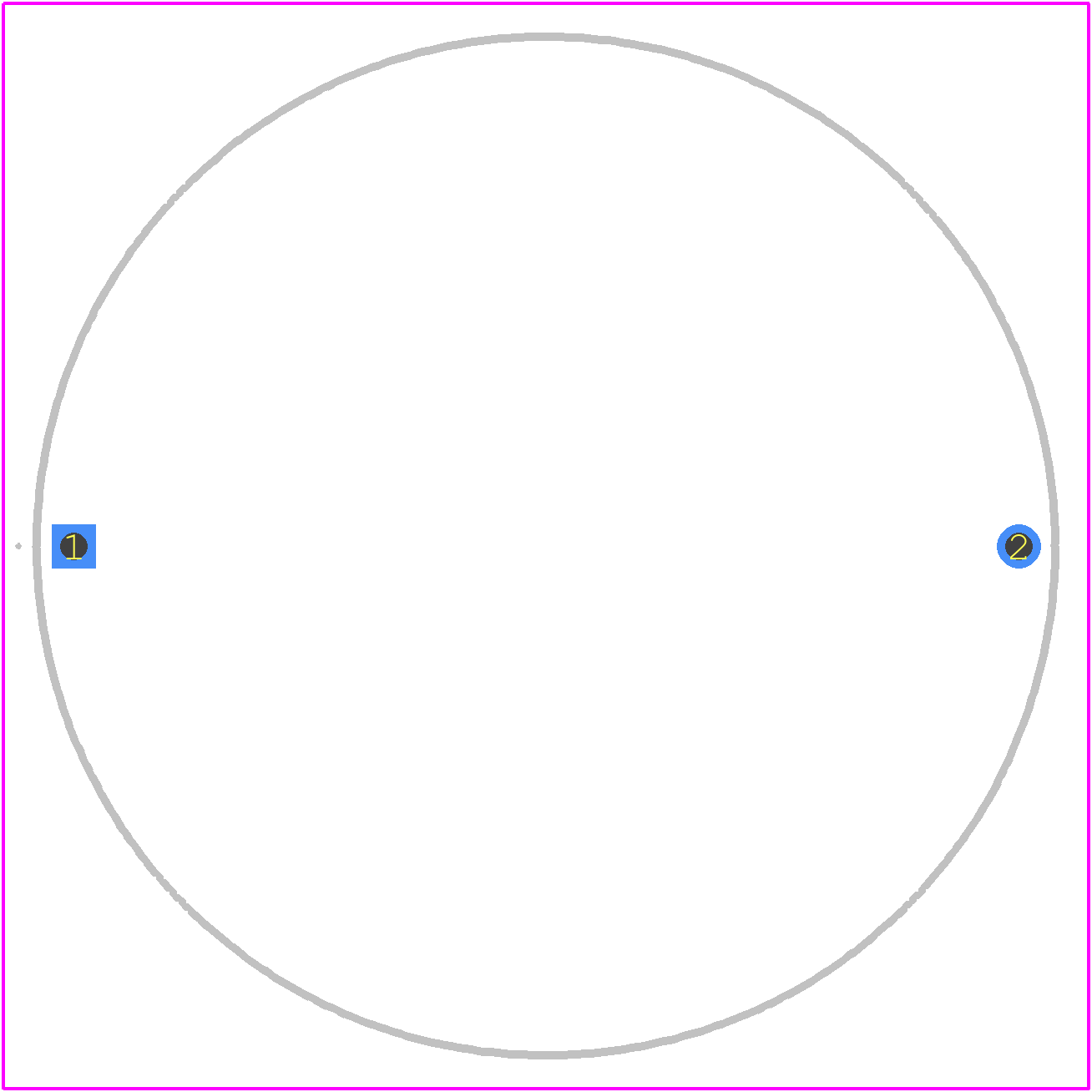

• What is the recommended land pattern for the 1422604C?
  The recommended land pattern for the 1422604C can be found in Murata's application notes or on their website. It typically includes a rectangular pad with a size of 1.4mm x 2.6mm, with a 0.5mm keep-out area around the pad.
• How do I handle the 1422604C's sensitivity to moisture?
  To handle the 1422604C's sensitivity to moisture, it's recommended to follow Murata's guidelines for moisture sensitivity level (MSL) handling. This includes storing the components in a dry environment, using a dry pack or desiccant, and following proper baking procedures before reflow soldering.
• What is the maximum reflow temperature for the 1422604C?
  The maximum reflow temperature for the 1422604C is typically 260°C, with a peak temperature not exceeding 240°C. It's essential to follow Murata's recommended reflow profile to ensure the component's reliability and performance.
• Can I use the 1422604C in a high-vibration environment?
  The 1422604C is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult with Murata's application engineers or perform additional testing to ensure the component's reliability and performance.
• How do I ensure the 1422604C's electromagnetic compatibility (EMC)?
  To ensure the 1422604C's EMC, it's recommended to follow proper PCB design guidelines, including using a solid ground plane, minimizing loop areas, and using shielding or filtering components as necessary. Additionally, consult with Murata's application notes and EMC guidelines for specific recommendations.
