14230R-450 - Renesas Electronics

Description: Network Controller & Processor ICs 14230R-450 FT 3150 - P20 Smart Transceiver

Download 14230R-450 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

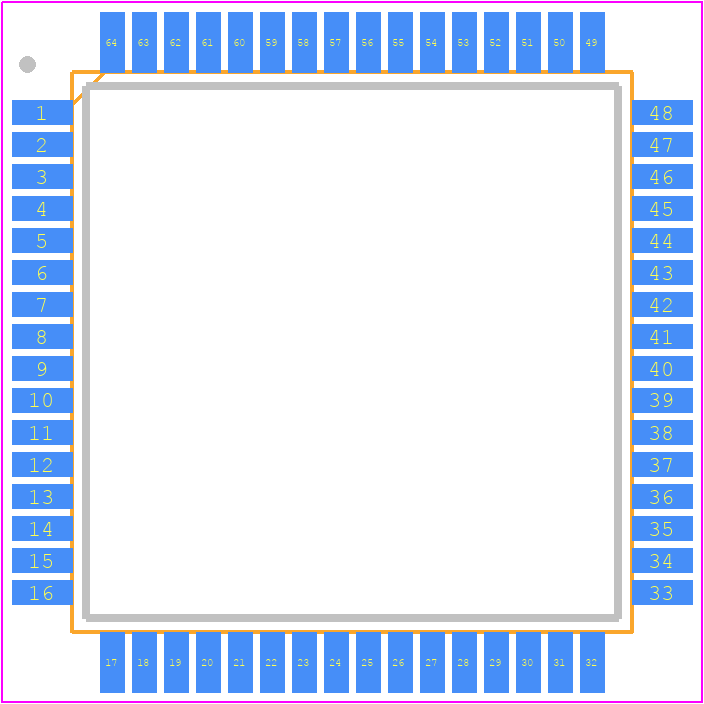

14230R-450 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 64 TQFP A65
click to zoom
3D Models
14230R-450 - Renesas Electronics  - 3D model - Quad Flat Packages - 64 TQFP A65
click to zoom

14230R-450 Details

  • Manufacturer Part Number:

    14230R-450

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TQFP-64

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    MANCHESTER ENCODER/DECODER

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

14230R-450 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. Ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently.
  • Implement a robust thermal management system, including heat sinks, thermal interfaces, and airflow management. Ensure that the device is operated within the recommended temperature range and consider using thermal monitoring and shutdown mechanisms.
  • Use 10uF to 22uF decoupling capacitors with a voltage rating of 10V or higher. Place them as close as possible to the power pins, with a maximum distance of 1cm. Use a 0.1uF capacitor in parallel for high-frequency decoupling.
  • Implement ESD protection using TVS diodes or ESD protection arrays at the input/output pins. Ensure that the protection devices are rated for the maximum voltage and current of the application.
  • Power sequencing should follow the recommended power-up sequence in the datasheet. Ramp-up times should be slower than 10ms to prevent inrush currents and ensure reliable operation.
