1424193 - Phoenix Contact

Description: Flush-type female connector CAT5 (IEC 11801:2002), 8-position, Wave soldering contacts item no.: 1239450

Download 1424193 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

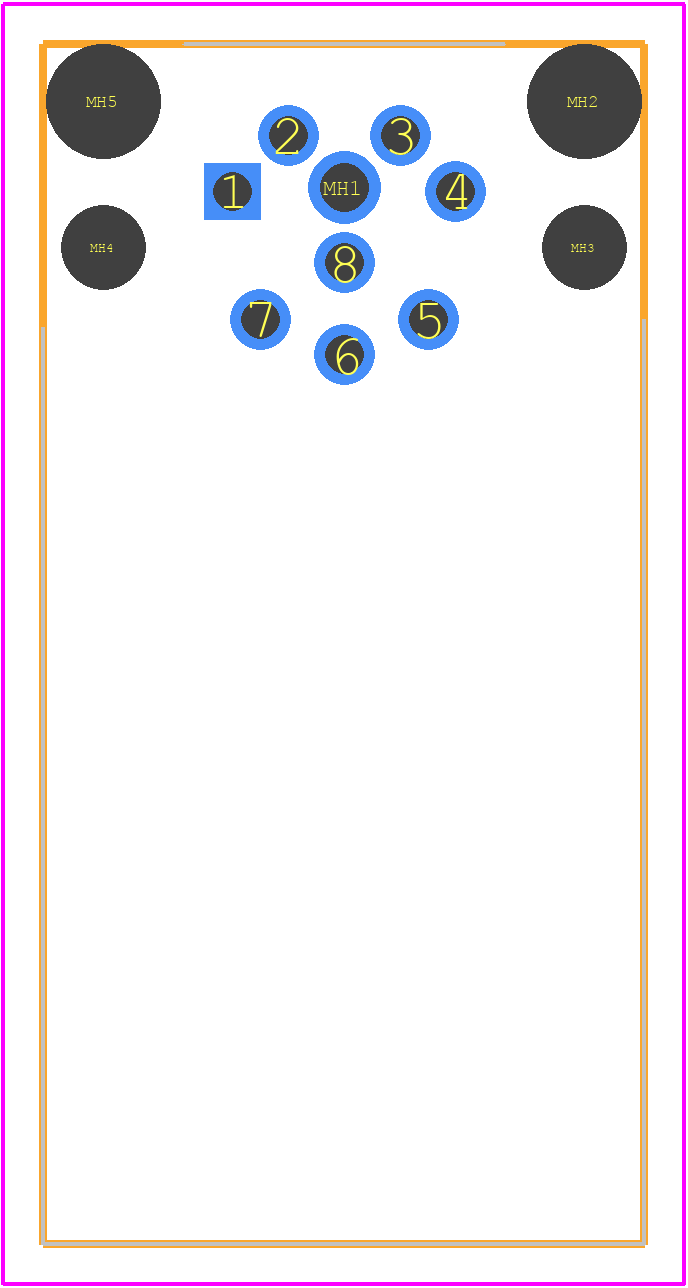

1424193 - Phoenix Contact PCB footprint - Other - Other - 1424193-1
click to zoom
3D Models
1424193 - Phoenix Contact  - 3D model - Other - 1424193-1
click to zoom

1424193 Details

  • Manufacturer Part Number:

    1424193

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not_compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Backshell Type:

    SOLID

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    POLYPHTALAMIDE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8
