1424199 - Phoenix Contact

Description: SACC-CI-M12FS-12CON-L90 SH - Contact carrier, 12-position, Socket, angled, M12, A-coding, Wave soldering, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1424199 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1424199 - Phoenix Contact - PCB symbol
click to zoom

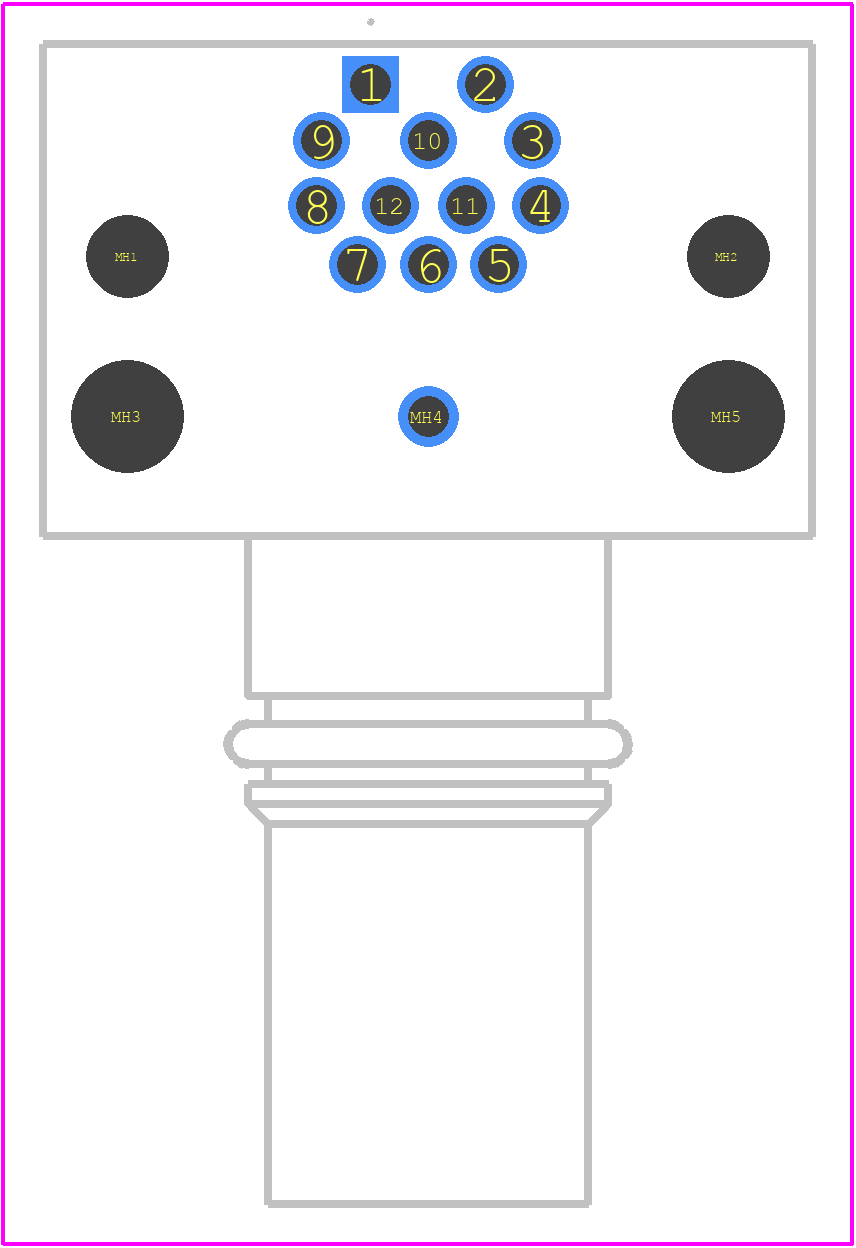

PCB Footprints
1424199 - Phoenix Contact PCB footprint - Other - Other - 1424199-8
click to zoom
3D Models
1424199 - Phoenix Contact - 3D model - Other - 1424199-8
click to zoom

1424199 Details

  • Manufacturer Part Number:

    1424199

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    Rated Current (Signal):1.5A; Rated Voltage:30V

  • Backshell Type:

    SOLID

  • Body Depth:

    1.142 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • Empty Shell:

    NO

  • Environmental Characteristics:

    ENVIRONMENT RESISTANT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE6T

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

1424199 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material.
  • Yes, the 1424199 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing to ensure suitability for your specific application.
  • The 1424199 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and installation to maintain the IP rating.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. It's best to stick to the recommended wire gauge range of 0.5 mm² to 2.5 mm².
  • The 1424199 connector is designed to be compatible with other Phoenix Contact products, such as their terminal blocks and PCB connectors. However, compatibility with third-party components should be verified on a case-by-case basis.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1424199 Overview

Use the download button to access the 1424199 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14241, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
