1425594 - Phoenix Contact

Description: SACC-CI-M12MSL-4FE-L180 THR GR T - Contact carrier, Power, 5-position, Pin, straight, M12, L-coding, THR solder connection, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Download 1425594 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1425594 - Phoenix Contact - PCB symbol
click to zoom

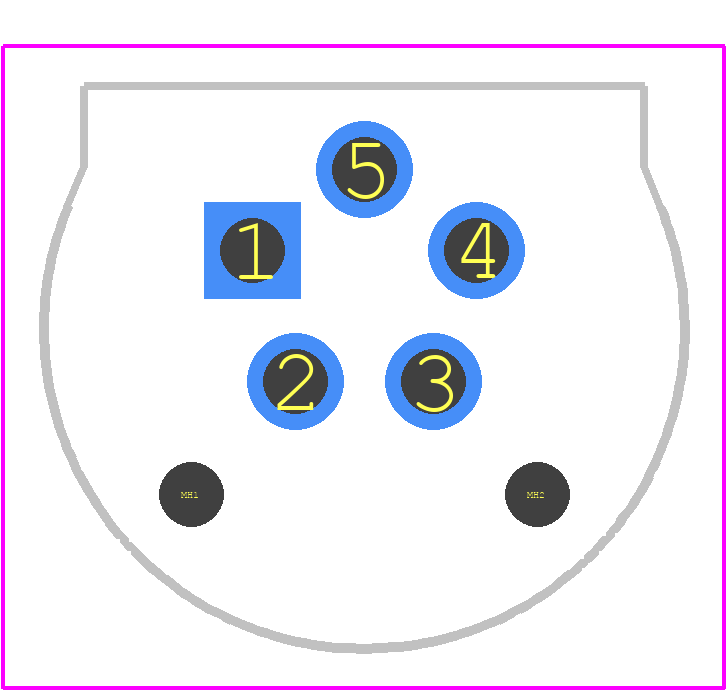

PCB Footprints
1425594 - Phoenix Contact PCB footprint - Other - Other - 1425594
click to zoom
3D Models
1425594 - Phoenix Contact - 3D model - Other - 1425594
click to zoom

1425594 Details

  • Manufacturer Part Number:

    1425594

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

1425594 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1425594 is -40°C to 125°C.
  • Yes, the 1425594 is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • The 1425594 is not certified for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications.
  • The 1425594 can accommodate wire sizes up to 2.5 mm² (AWG 14).
  • Yes, the 1425594 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1425594 Overview

Use the download button to access the 1425594 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14255, or try a keyword search, such as Other Circular Connectors
