1425641 - Phoenix Contact

Description: SACC-CI-M12MSL-4CON-L180 THR SH R - Contact carrier, Power, 4-position, Pin, straight, M12, L-coding, THR solder connection

Download 1425641 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1425641 - Phoenix Contact - PCB symbol
click to zoom

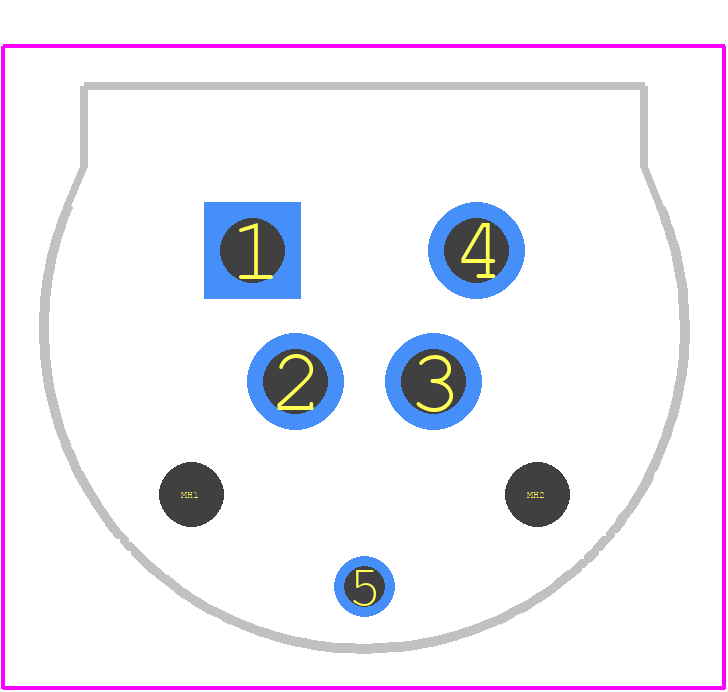

PCB Footprints
1425641 - Phoenix Contact PCB footprint - Other - Other - 1425641
click to zoom
3D Models
1425641 - Phoenix Contact - 3D model - Other - 1425641
click to zoom

1425641 Details

  • Manufacturer Part Number:

    1425641

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

1425641 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1425641 is -40°C to 125°C.
  • Yes, the 1425641 is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 1425641 is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10 g.
  • The maximum current rating for the 1425641 is 12 A per pin.
  • Yes, the 1425641 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1425641 Overview

Use the download button to access the 1425641 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14256, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
