1425642 - Phoenix Contact

Description: SACC-CI-M12FSL-4CON-L180 THR SH R - Contact carrier, Power, 4-position, Socket, straight, M12, L-coding, THR solder connection

Download 1425642 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1425642 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

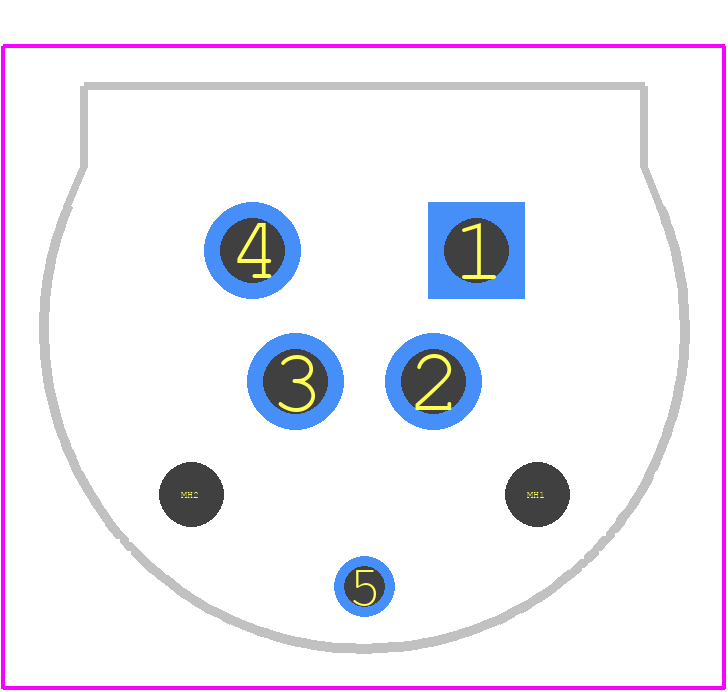

1425642 - Phoenix Contact PCB footprint - Other - Other - 1425642
click to zoom
3D Models
1425642 - Phoenix Contact - 3D model - Other - 1425642
click to zoom

1425642 Details

  • Manufacturer Part Number:

    1425642

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

1425642 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1425642 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1425642 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, making it easy to integrate into existing systems.
  • The maximum current rating for the 1425642 is 12 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1425642 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, ensuring that it meets the necessary environmental and safety standards.
  • The 1425642 is typically used in industrial automation, machine building, and electrical engineering applications, where reliable and secure connections are required.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1425642 Overview

Use the download button to access the 1425642 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14256, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
