142A - Hammond Manufacturing

Description: Audio Transformer 1:1 1500Vrms 720Ohm Prim. DCR 925Ohm Sec. DCR PC Pin Thru-Hole

Download 142A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

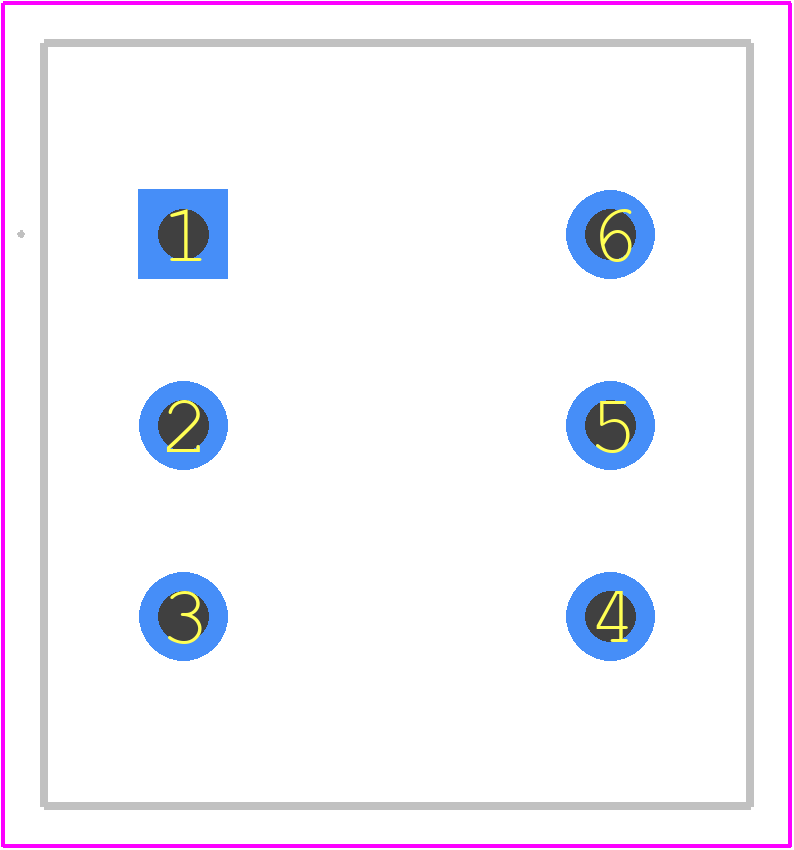

142A - Hammond Manufacturing PCB footprint - Other - Other - 142A-1
click to zoom
3D Models
142A - Hammond Manufacturing  - 3D model - Other - 142A-1
click to zoom

142A Details

  • Manufacturer Part Number:

    142A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    6

  • Application:

    AUDIO

  • Height:

    18.288 mm

  • Length:

    19.05 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Operating Frequency-Max:

    15 kHz

  • Operating Frequency-Min:

    0.2 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Primary Impedance:

    10000 OHMS CT

  • Secondary Impedance:

    10000 OHMS CT

  • Surface Mount:

    NO

  • Transformer Type:

    GENERAL PURPOSE AUDIO TRANSFORMER

  • Width:

    17.653 mm

142A Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 142A is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 142A is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the unit to ensure optimal performance.
  • The 142A is designed for indoor use, but it can be used outdoors if properly protected from environmental factors such as moisture, extreme temperatures, and physical damage. Consult with Hammond Manufacturing for specific guidance on outdoor use.
  • The 142A is designed to operate up to 10,000 feet (3,048 meters) above sea level. Consult with Hammond Manufacturing for specific guidance on high-altitude use.
  • Yes, Hammond Manufacturing offers customization options for the 142A. Contact their sales team to discuss your specific requirements and determine the feasibility of customization.
