- Part Number 1430433C
- Manufacturer Murata Electronics
- Pin Count 2
- Part Category Inductor
- Package Category Other

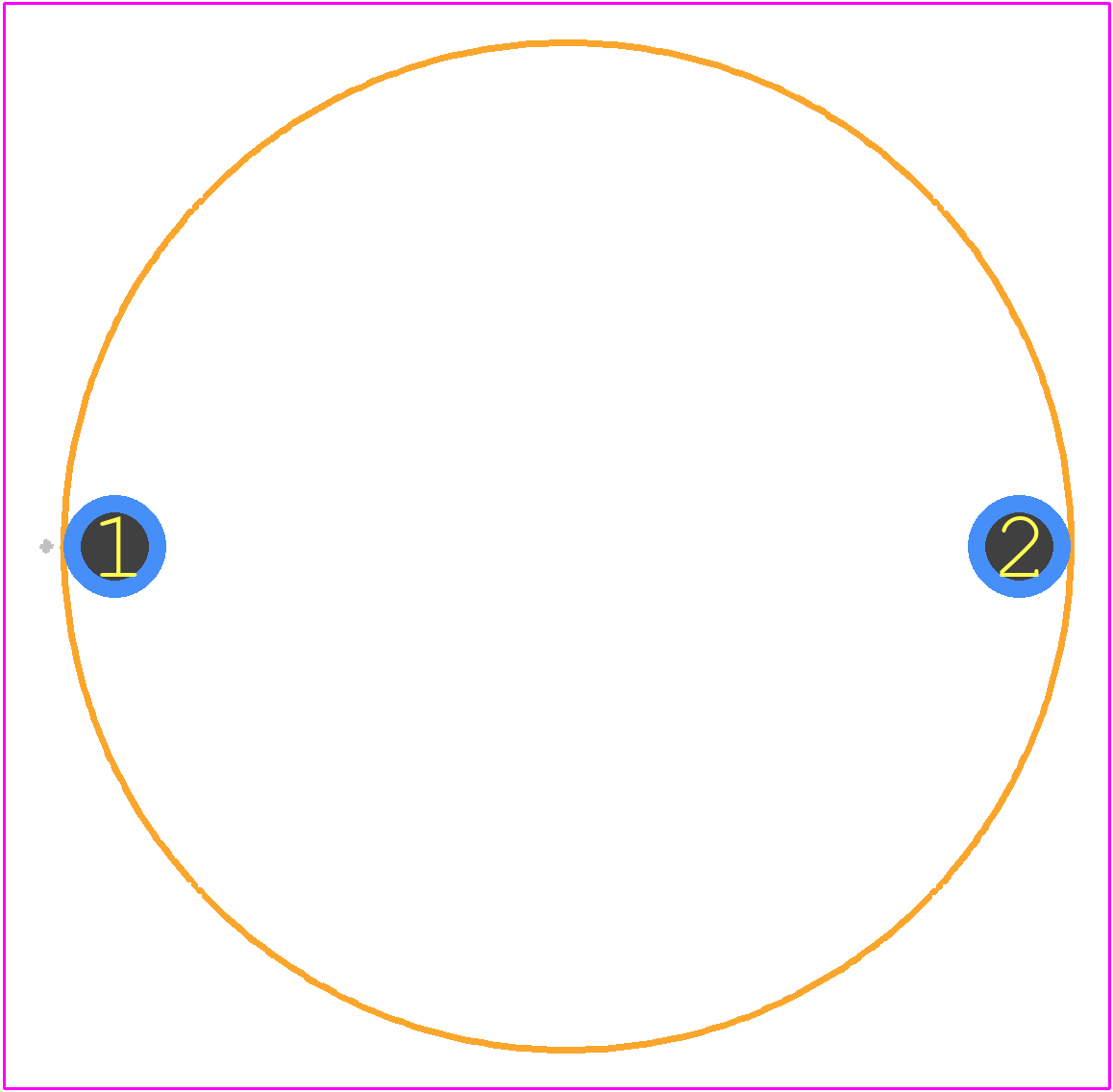

- Footprint Name Other - 1430433C-2
- Released Date Dec 19, 2020
- Last Modified Date Jan 3, 2025 3:41 PM UTC
- Pinout / Pin List Click Here (Member Only)
1430433C Details
-
Manufacturer Part Number:
1430433C
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
RADIAL LEADED
-
ECCN Code:
EAR99
-
HTS Code:
8504.50.80.00
-
Factory Lead Time:
11 Weeks
-
Manufacturer:
Murata Manufacturing Co Ltd
-
YTEOL:
7
-
Construction:
Bobbin
-
DC Resistance:
0.1 Ω
1430433C Frequently Asked Questions (FAQs)
-
Murata recommends a land pattern with a pad size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape, and a minimum clearance of 0.5mm between the pad and the solder mask.
-
The 1430433C is rated for operation up to 125°C, but it's recommended to derate the component's performance at high temperatures. Consult Murata's reliability handbook for more information on temperature derating.
-
Handle the component by the edges, avoid touching the pads, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Follow standard PCB assembly and handling procedures.
-
Murata recommends a soldering profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a cooling rate of 3-5°C/s. Consult Murata's soldering guidelines for more information.
-
The 1430433C is designed to withstand vibrations up to 10G, but it's recommended to perform additional testing and analysis to ensure the component's reliability in specific high-vibration applications.
