Part Image

1436961 - Phoenix Contact

Description: SACC-DSIV-MS-8CON-L90 SCO - Device connector rear mounting, 8-position, Pin, angled, M12-SPEEDCON, A-coding, THR and wave soldering, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1436961 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1436961 - Phoenix Contact - PCB symbol
click to zoom

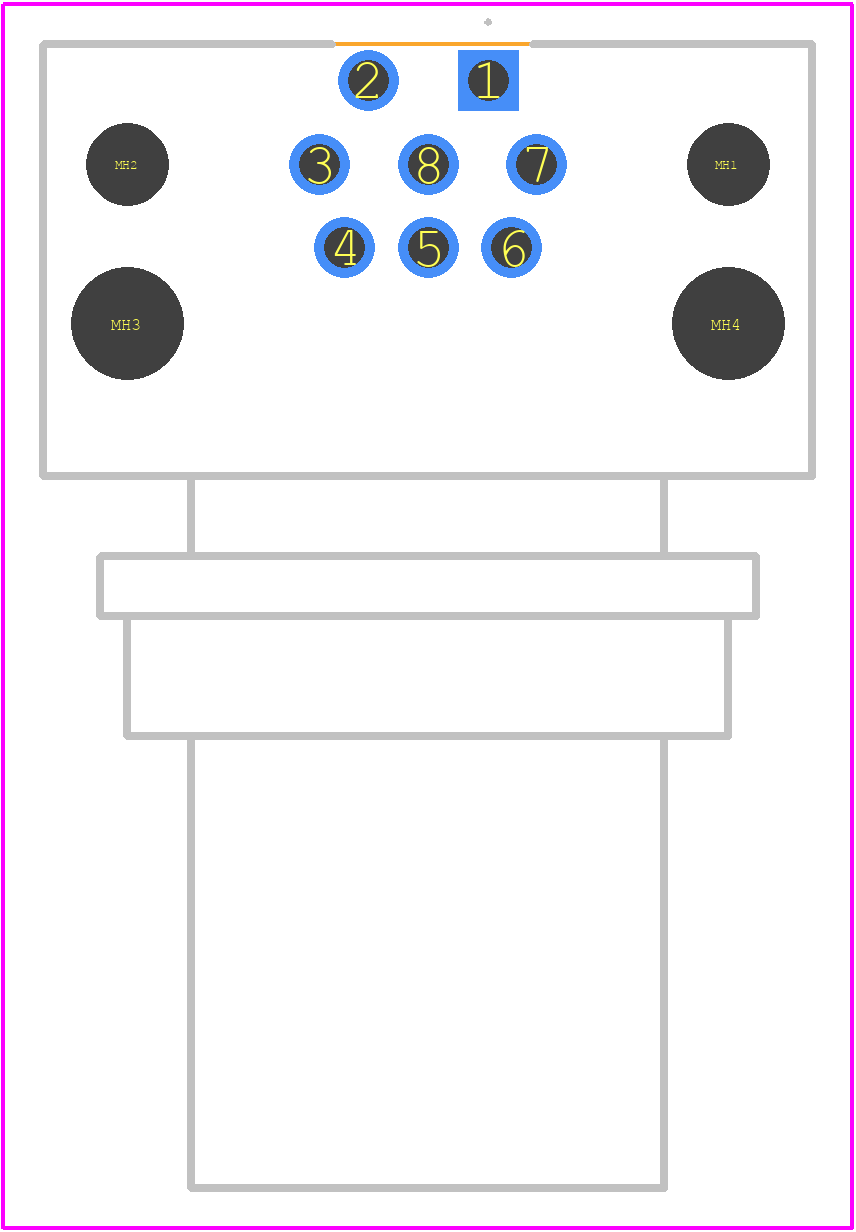

PCB Footprints
1436961 - Phoenix Contact PCB footprint - Other - Other - 1436961
click to zoom
3D Models
1436961 - Phoenix Contact - 3D model - Other - 1436961
click to zoom

1436961 Details

  • Manufacturer Part Number:

    1436961

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8.75

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE66

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    PA66

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

1436961 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1436961 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1436961 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, allowing for easy integration into existing systems.
  • The maximum current rating of the 1436961 is 41 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1436961 is UL certified, meeting the safety standards of Underwriters Laboratories, a leading independent safety science company.
  • Yes, the 1436961 is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration, making it suitable for use in industrial and automation applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1436961 Overview

Use the download button to access the 1436961 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14369, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
