1437025 - Phoenix Contact

Description: SACC-DSIV-FS-8CON-L90 SH SCO - Device connector front mounting, 8-position, Socket, angled, M12-SPEEDCON, A-coding, THR and wave soldering, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1437025 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1437025 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

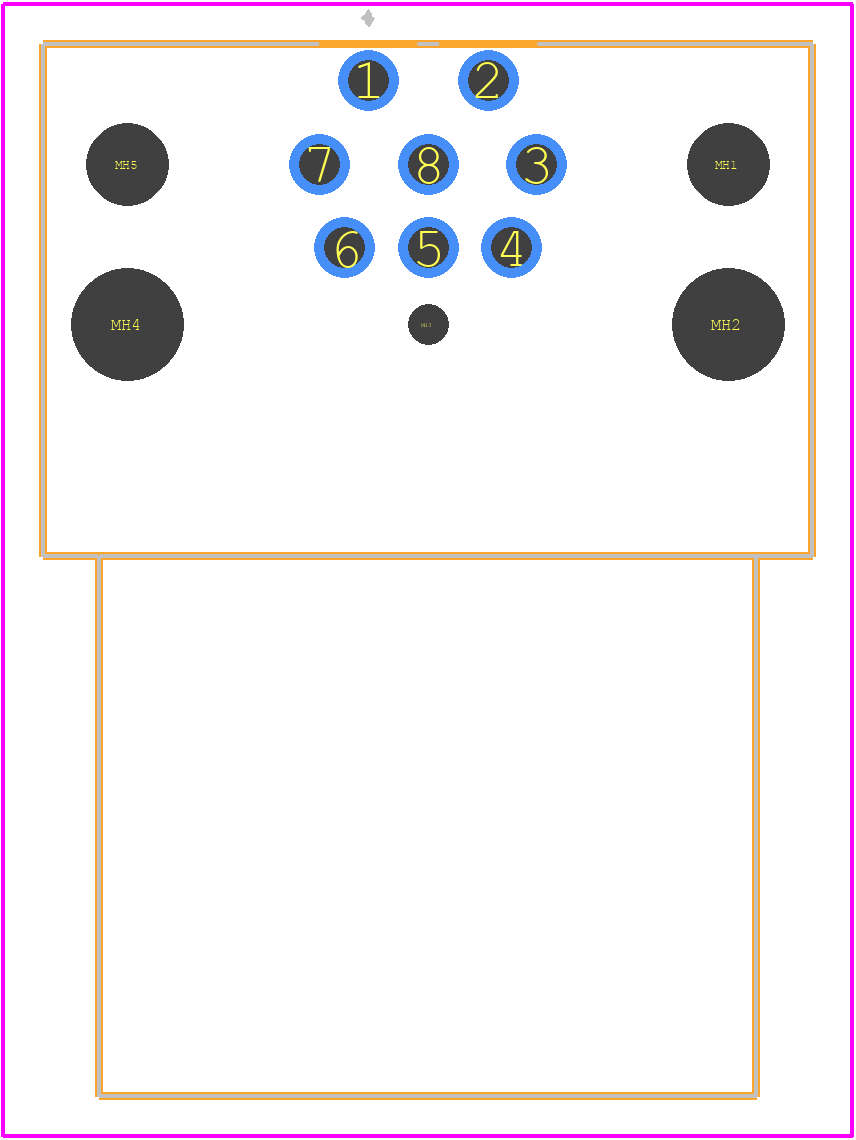

1437025 - Phoenix Contact PCB footprint - Other - Other - 1437025-1
click to zoom
3D Models
1437025 - Phoenix Contact - 3D model - Other - 1437025-1
click to zoom

1437025 Details

  • Manufacturer Part Number:

    1437025

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL):4A; RATED VOLTAGE:60V

  • Backshell Type:

    SOLID

  • Body Depth:

    0.945 inch

  • Body Diameter:

    0.65 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

1437025 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1437025 connector is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific high-vibration applications.
  • The 1437025 connector is rated for operating temperatures from -40°C to 125°C and can withstand humidities up to 95% RH. However, it's recommended to consult the datasheet and perform additional testing for specific environmental conditions.
  • The 1437025 connector is rated for currents up to 12A per contact. However, it's recommended to consult the datasheet and perform additional testing for specific high-current applications.
  • Yes, the 1437025 connector is designed for automated assembly and reflow soldering. However, it's recommended to follow the manufacturer's guidelines for soldering profiles and temperatures.
