Description: SACC-CI-M12MS-5CON-L90 SH SCO - Contact carrier, 5-position, Pin, angled, M12, A-coding, Wave soldering, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Download 1439890 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1439890 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

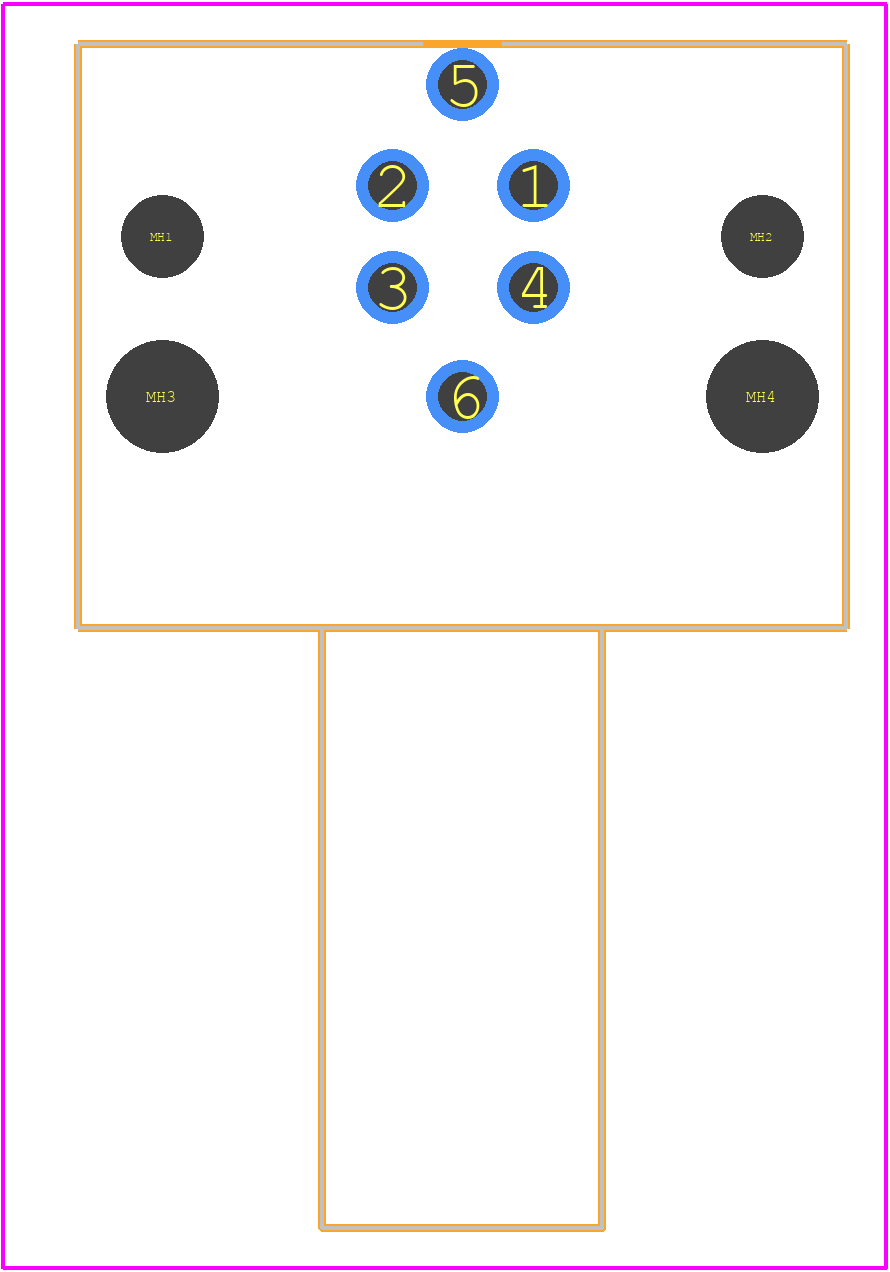

1439890 - Phoenix Contact PCB footprint - Other - Other - 1439890-3
click to zoom
3D Models
1439890 - Phoenix Contact - 3D model - Other - 1439890-3
click to zoom

1439890 Details

  • Manufacturer Part Number:

    1439890

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8.76

  • Additional Feature:

    94V-0

  • Backshell Type:

    SOLID

  • Body Depth:

    1.165 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    EAC; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

1439890 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material.
  • Yes, the 1439890 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific vibration profiles.
  • The 1439890 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and installation to maintain the IP rating.
  • While it's technically possible, using a different wire gauge than recommended may affect the connector's performance and reliability. It's recommended to stick to the recommended wire gauge range to ensure optimal performance.
  • To ensure proper grounding, make sure to connect the grounding pin to a suitable grounding point on the device or panel. Additionally, ensure that the connector is properly screwed onto the panel to maintain a secure ground connection.
