1439971 footprint, schematic symbol and 3D model by Phoenix Contact

Symbol

click to zoom

PCB Footprints

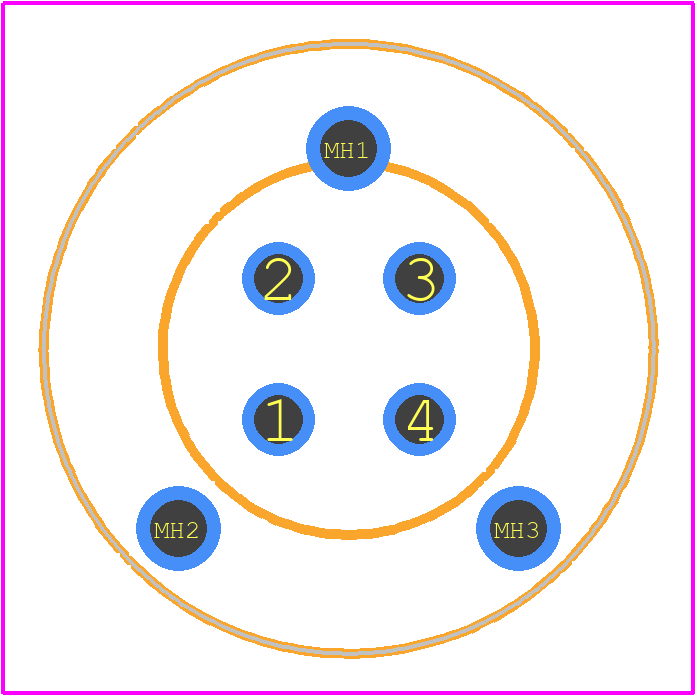

1439971 - Phoenix Contact PCB footprint - Other - Other - 1439971

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1439971
Part Number 1439971
Manufacturer Phoenix Contact
Pin Count 7
Part Category Connector
Package Category Other
Footprint Name Other - 1439971
Released Date Feb 20, 2020
Last Modified Date Apr 29, 2026 5:18 PM UTC
Pinout / Pin List Click Here (Member Only)

1439971 Details

Manufacturer Part Number:
1439971
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Phoenix Contact
YTEOL:
0
Connector Type:
CIRCULAR CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

1439971 Overview

Use the download button to access the 1439971 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 14399, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
