1440800000 - Weidmüller

Description: PCB connector (board connection), 320 V, 14 A, Pitch in mm: 5.00, Number of poles: 4, THT solder connection, Box

Download 1440800000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1440800000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

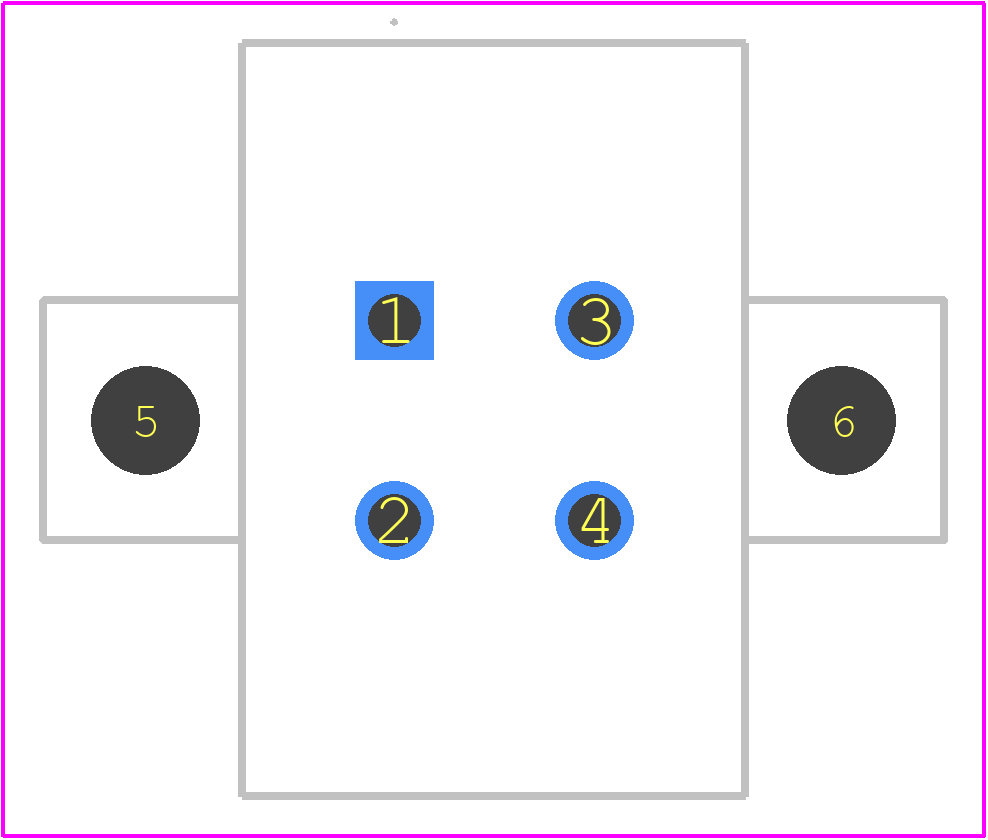

1440800000 - Weidmüller PCB footprint - Other - Other - 1440800000-5
click to zoom
3D Models
1440800000 - Weidmüller - 3D model - Other - 1440800000-5
click to zoom

1440800000 Details

  • Manufacturer Part Number:

    1440800000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    PANEL MOUNTABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

1440800000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1440800000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1440800000 is designed to be compatible with various industrial automation protocols, including PROFINET and EtherNet/IP, making it suitable for use in industrial automation applications.
  • The maximum cable length supported by the 1440800000 depends on the specific application and cable type used. However, as a general guideline, Weidmüller recommends a maximum cable length of 100 meters for most applications.
  • The 1440800000 has built-in surge protection, which provides a certain level of protection against electrical surges and spikes. However, depending on the specific application and environmental conditions, additional external protection may still be necessary to ensure reliable operation.
  • The 1440800000 is not designed for use in hazardous locations or explosive atmospheres. If you need a product for use in such environments, you should consult with Weidmüller or a qualified engineer to select a suitable alternative.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1440800000 Overview

Use the download button to access the 1440800000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14408, or try a keyword search, such as Headers and Edge Type Connectors
