1441833 - Phoenix Contact

Description: SACC-DSI-M12FS-12CON-M16 - Device connector rear mounting, 12-position, Socket, straight, M12-SPEEDCON, A-coding, Wave soldering, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1441833 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1441833 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

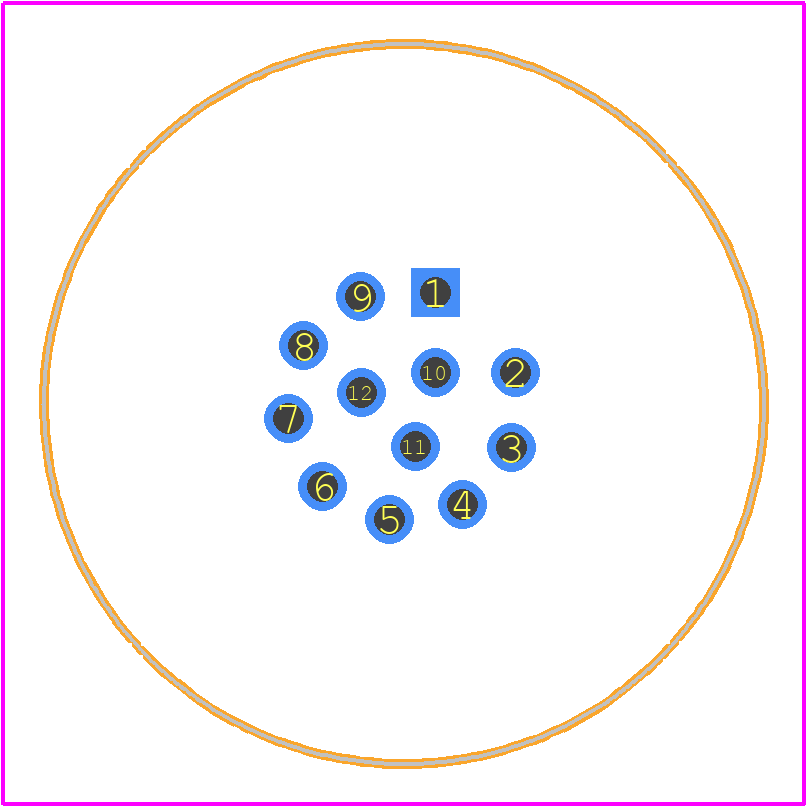

1441833 - Phoenix Contact PCB footprint - Other - Other - 1441833
click to zoom
3D Models
1441833 - Phoenix Contact - 3D model - Other - 1441833
click to zoom

1441833 Details

  • Manufacturer Part Number:

    1441833

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    9

  • Additional Feature:

    RATED CURRENT(SIGNAL):1.5A; RATED VOLTAGE:30V

  • Backshell Type:

    SOLID

  • Body Depth:

    0.768 inch

  • Body Diameter:

    0.748 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • Mixed Contacts:

    NO

  • Mounting Type:

    CABLE AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    EAC;IEC;UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

1441833 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and manufacturer's recommendations for optimal results.
  • While the 1441833 is a robust connector, it's not specifically designed for high-vibration applications. For such use cases, consider using connectors with additional features like locking mechanisms or specialized vibration-resistant designs.
  • Yes, the 1441833 is designed for automated assembly and can be easily integrated into pick-and-place machines. However, it's crucial to consult with the manufacturer and the assembly machine provider to ensure compatibility and optimal setup.
  • The 1441833 is rated for operation between -40°C and 125°C. However, it's essential to consider the specific application and environmental conditions to ensure the connector's performance and reliability.
  • The 1441833 is designed for signal transmission and is not intended for high-current applications. For high-current needs, consider using connectors specifically designed for power transmission, such as those with larger wire gauges and higher current ratings.
