1442052 - Phoenix Contact

Description: SACC-CI-M12FS-12CON-L180 THRSH - Contact carrier, 12-position, Socket, straight, M12, A-coding, THR solder connection, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1442052 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1442052 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

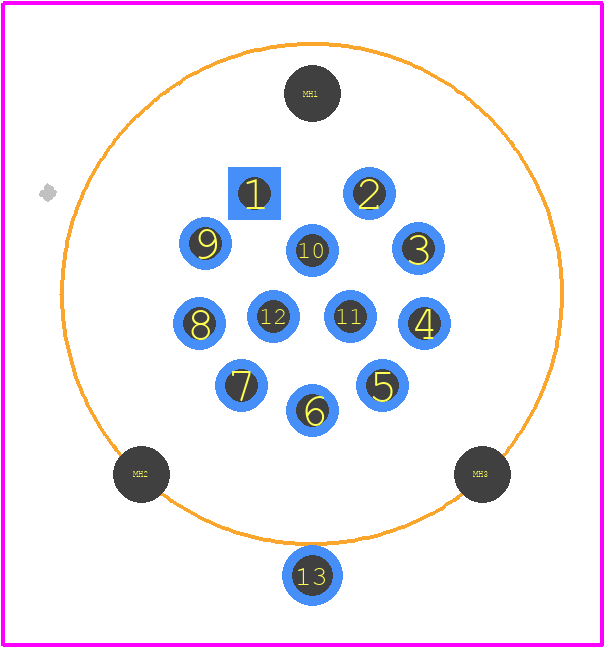

1442052 - Phoenix Contact PCB footprint - Other - Other - 1442052
click to zoom
3D Models
1442052 - Phoenix Contact - 3D model - Other - 1442052
click to zoom

1442052 Details

  • Manufacturer Part Number:

    1442052

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    RATED CURRENT(SIGNAL):2A; RATED VOLTAGE:30V

  • Backshell Type:

    SOLID

  • Body Depth:

    0.768 inch

  • Body Diameter:

    0.325 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYPHTHALAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC;UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

1442052 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, but it's essential to consult the specific panel manufacturer's guidelines as well.
  • Yes, the 1442052 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure wiring to prevent damage.
  • The 1442052 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's essential to follow proper installation and sealing guidelines to maintain the IP rating.
  • Yes, the 1442052 connector is designed to be compatible with other Phoenix Contact products, such as their terminal blocks and PCB connectors. However, compatibility with third-party components should be verified before use.
  • The 1442052 connector is rated for operation in temperatures ranging from -40°C to 125°C. However, it's essential to consider the specific application and potential temperature fluctuations.
