1442065 - Phoenix Contact

Description: SACC-CI-M12MS-12CON-L180 THRSH - Contact carrier, 12-position, Pin, straight, M12, A-coding, THR solder connection, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Download 1442065 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1442065 - Phoenix Contact - PCB symbol
click to zoom

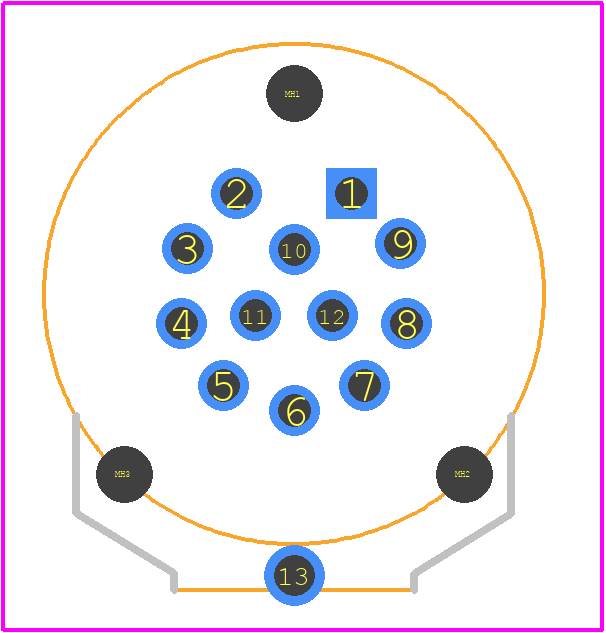

PCB Footprints
1442065 - Phoenix Contact PCB footprint - Other - Other - 1442065
click to zoom
3D Models
1442065 - Phoenix Contact - 3D model - Other - 1442065
click to zoom

1442065 Details

  • Manufacturer Part Number:

    1442065

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    IEC-61076-2-101, RATED VOLTAGE: 30V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYPHTALAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

1442065 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, but it's essential to consult the Phoenix Contact documentation or contact their support for specific guidance.
  • Yes, the 1442065 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure wiring to prevent damage.
  • The 1442065 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to follow proper installation and sealing guidelines to maintain the IP67 rating.
  • Yes, the 1442065 connector is designed to be compatible with other Phoenix Contact products and can be used with third-party components. However, it's essential to verify compatibility and follow proper installation guidelines to ensure reliable connections.
  • The 1442065 connector has an operating temperature range of -40°C to 125°C. However, it's essential to consult the datasheet and Phoenix Contact documentation for specific temperature ratings and derating guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1442065 Overview

Use the download button to access the 1442065 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14420, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
