1445600000 - Weidmüller

Description: PCB connector (board connection), 320 V, 14 A, Pitch in mm: 5.00, Number of poles: 24, THT solder connection, Box

Download 1445600000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1445600000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

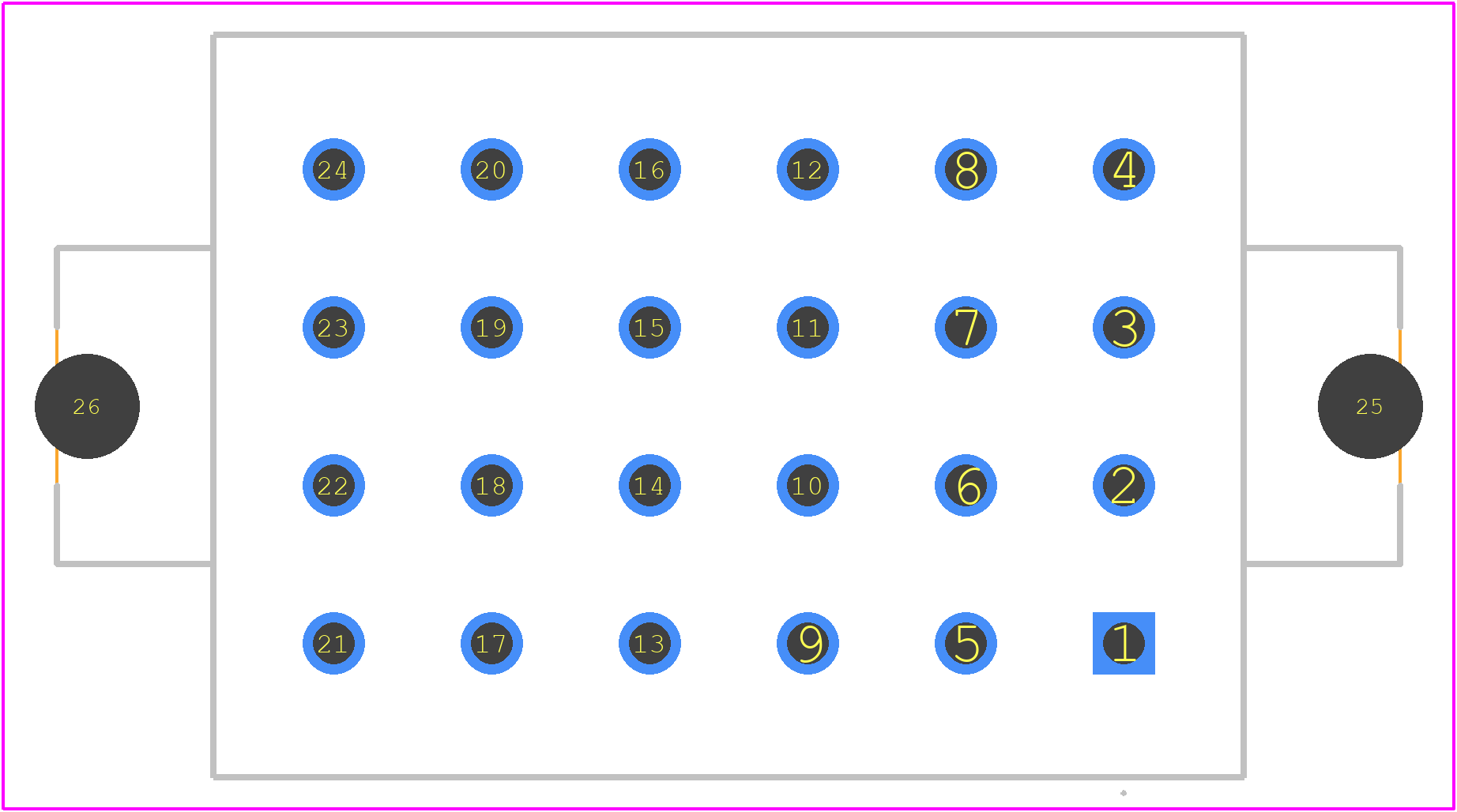

1445600000 - Weidmüller PCB footprint - Other - Other - 1445600000-4
click to zoom
3D Models
1445600000 - Weidmüller - 3D model - Other - 1445600000-4
click to zoom

1445600000 Details

  • Manufacturer Part Number:

    1445600000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Body Depth:

    0.563 inch

  • Body Length:

    1.083 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -50 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    10 A

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

1445600000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1445600000 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1445600000 connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2 and EN 61373 Cat. 2 standards, ensuring reliable connections in harsh environments.
  • The 1445600000 connector has a protection rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes, making it suitable for use in humid or wet environments.
  • The 1445600000 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections over an extended period.
  • Yes, the 1445600000 connector is designed to be compatible with other Weidmüller products, such as their range of terminals and connectors, allowing for easy integration into existing systems.
