1446600000 - Weidmüller

Description: PCB connector (board connection), 320 V, 14 A, Pitch in mm: 5.00, Number of poles: 36, THT solder connection, Box

Download 1446600000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

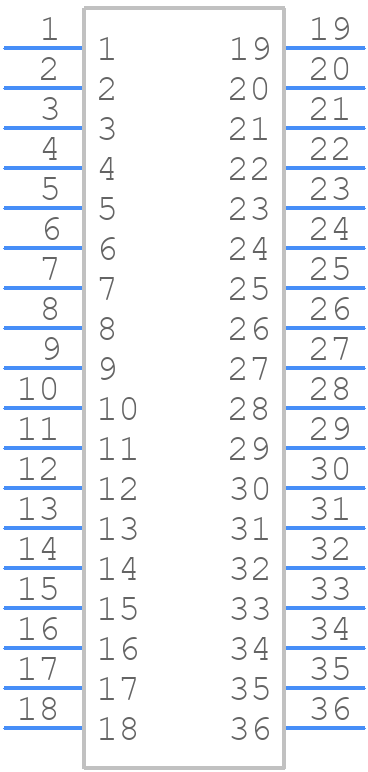

1446600000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

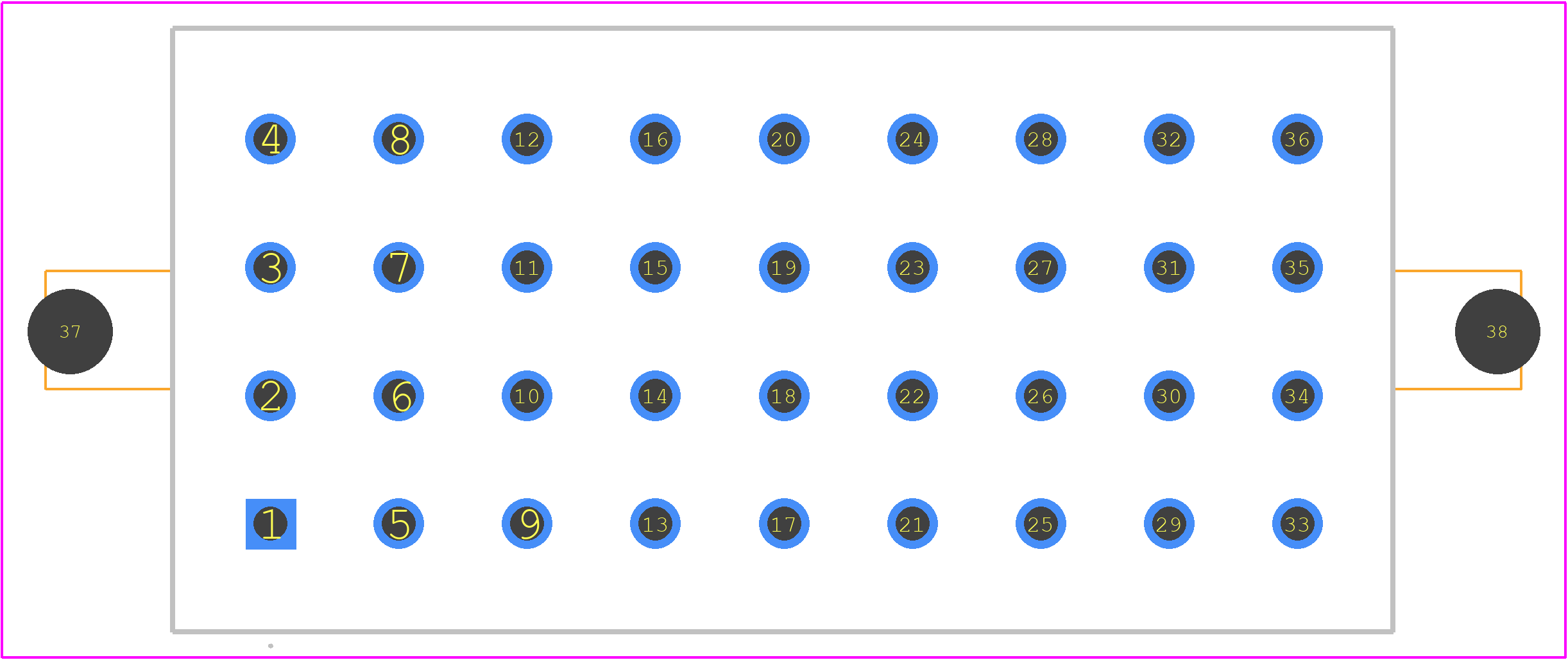

1446600000 - Weidmüller PCB footprint - Other - Other - 1446600000-2
click to zoom
3D Models
1446600000 - Weidmüller - 3D model - Other - 1446600000-2
click to zoom

1446600000 Details

  • Manufacturer Part Number:

    1446600000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Body Depth:

    0.563 inch

  • Body Length:

    2.264 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -50 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    10 A

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    36

  • UL Flammability Code:

    94V-0

1446600000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1446600000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1446600000 is designed to be compatible with various industrial automation protocols, including PROFINET and EtherNet/IP, making it suitable for use in industrial automation applications.
  • The maximum cable length supported by the 1446600000 depends on the specific application and cable type used. However, as a general guideline, Weidmüller recommends a maximum cable length of 100 meters for most applications.
  • The 1446600000 has built-in surge protection, which provides a certain level of protection against electrical surges and spikes. However, depending on the specific application and environmental conditions, additional external protection may still be necessary to ensure reliable operation.
  • The 1446600000 is not designed for use in hazardous locations or explosive atmospheres. If you need a product for such applications, you should consider Weidmüller's products that are specifically certified for use in hazardous locations, such as those with ATEX or IECEx certification.
