1447385C - Murata Electronics

1447385C Frequently Asked Questions (FAQs)

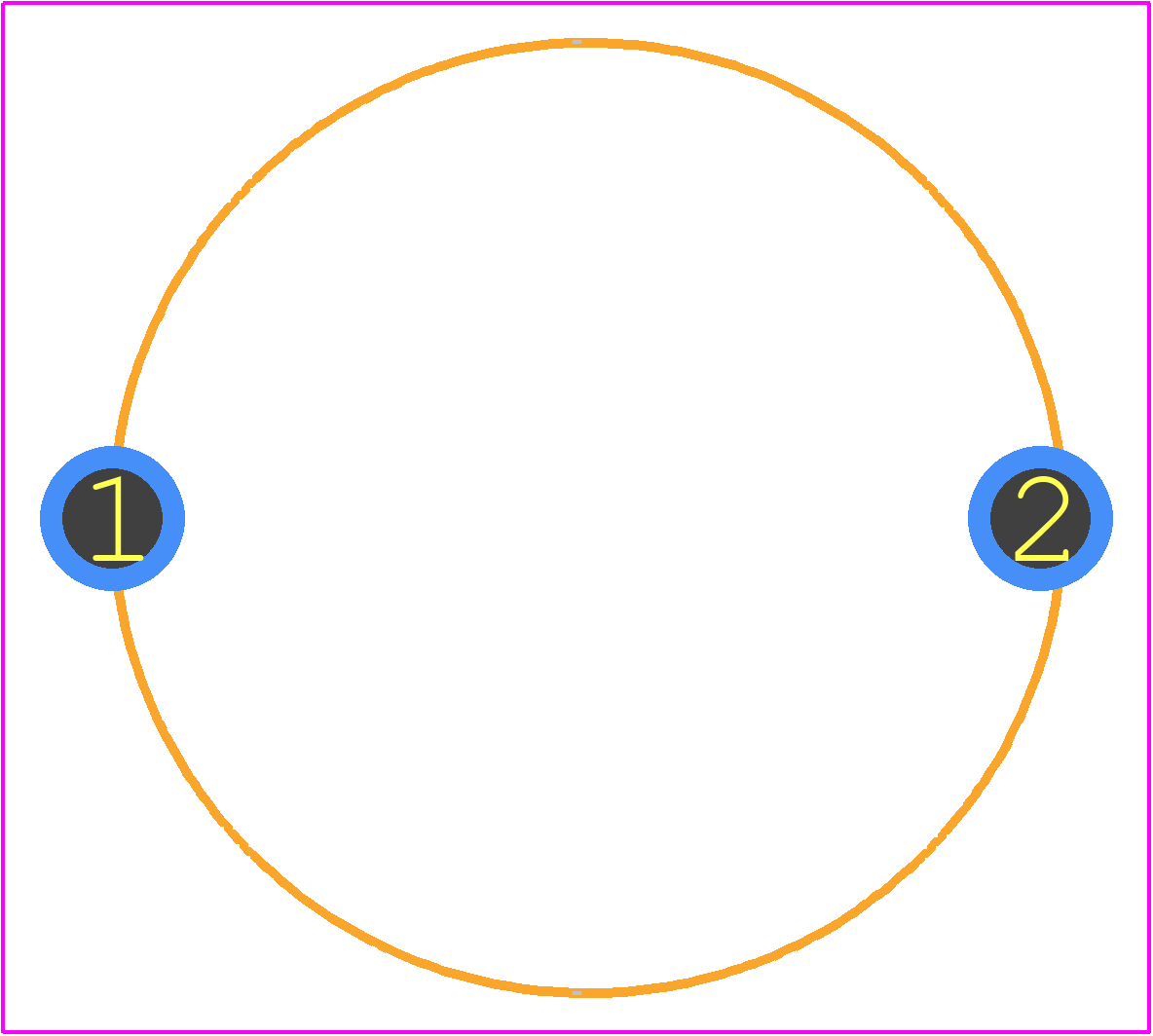

• What is the recommended land pattern for the 1447385C?
  The recommended land pattern for the 1447385C can be found in the Murata Land Pattern document, which provides detailed information on the recommended pad layout and dimensions for optimal mounting and soldering.
• How do I handle the 1447385C component during the reflow soldering process?
  To ensure proper soldering, it's recommended to follow the reflow soldering profile recommended by Murata, which typically involves a peak temperature of 240°C to 260°C, with a dwell time of 30-60 seconds above 220°C.
• What is the maximum operating temperature range for the 1447385C?
  The 1447385C is rated for operation from -40°C to +125°C, but it's essential to note that the component's performance and reliability may degrade at extreme temperatures. Consult the datasheet for specific temperature-related specifications.
• Can I use the 1447385C in a high-vibration environment?
  While the 1447385C is designed to be robust, it's essential to consider the vibration specifications and ensure that the component is properly mounted and secured to withstand the expected vibration levels. Consult the datasheet and Murata's vibration testing guidelines for more information.
• How do I ensure the 1447385C is properly cleaned and free of contaminants?
  Follow the recommended cleaning procedures outlined in the IPC-J-STD-001 standard, which includes using a solvent-based cleaning process and ensuring the component is free of flux residues and other contaminants.
