1447440C - Murata Electronics

Description: Murata 470 μH ±10% Radial Inductor, Max SRF:1.4MHz, Q:24, 4A Idc, 125mΩ Rdc 1400

Download 1447440C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1447440C - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

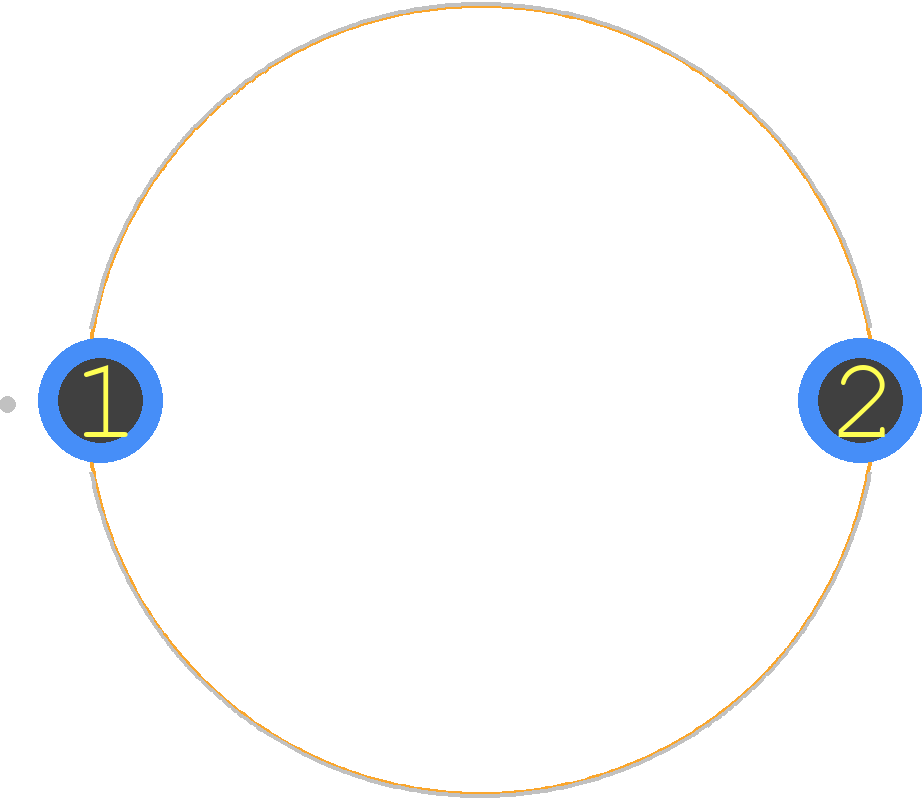

1447440C - Murata Electronics PCB footprint - Other - Other - 1447440C
click to zoom
3D Models
1447440C - Murata Electronics - 3D model - Other - 1447440C
click to zoom

1447440C Details

  • Manufacturer Part Number:

    1447440C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Construction:

    Bobbin

  • DC Resistance:

    0.125 Ω

  • Inductance-Nom (L):

    470 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.97 mm

  • Lead Length:

    10 mm

  • Lead Spacing:

    29 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    21.8 mm

  • Package Length:

    31.7 mm

  • Package Style:

    Radial

  • Package Width:

    29.8 mm

  • Packing Method:

    BULK

  • Rated Current-Max:

    4 A

  • Self Resonance Frequency:

    1.4 MHz

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

1447440C Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 1.3mm x 0.8mm, and a spacing of 0.5mm between pads. A detailed land pattern can be found in the Murata's recommended land pattern document.
  • The 1447440C is rated for operation up to 125°C, but it's recommended to derate the component's performance at high temperatures. Consult Murata's reliability handbook for more information on temperature derating.
  • Handle the component by the edges, avoid touching the pads, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Follow standard PCB assembly and handling procedures to prevent mechanical damage.
  • Murata recommends a soldering profile with a peak temperature of 260°C, and a dwell time of 10-30 seconds. Consult the Murata's soldering guidelines document for more information on recommended soldering profiles.
  • The 1447440C is designed to withstand vibrations up to 10G, but it's recommended to perform vibration testing to ensure the component meets the specific requirements of your application. Consult Murata's vibration testing guidelines for more information.
