14550R-500 - Renesas Electronics

Description: The Neuron® 6050 processor incorporates communication and control functions on a single chip in both hardware and firmware to facilitate the design of Industrial Internet of Things (IIoT) devices and consolidate smart control networks. The Neuron 6050 features a high-performance Neuron core. The device offers compatibility with the large installed base of LON and BACnet MS/TP devices, while adding support for LON/IP and BACnet/IP communication. Combined with external flash memory and communication transceiv

Download 14550R-500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

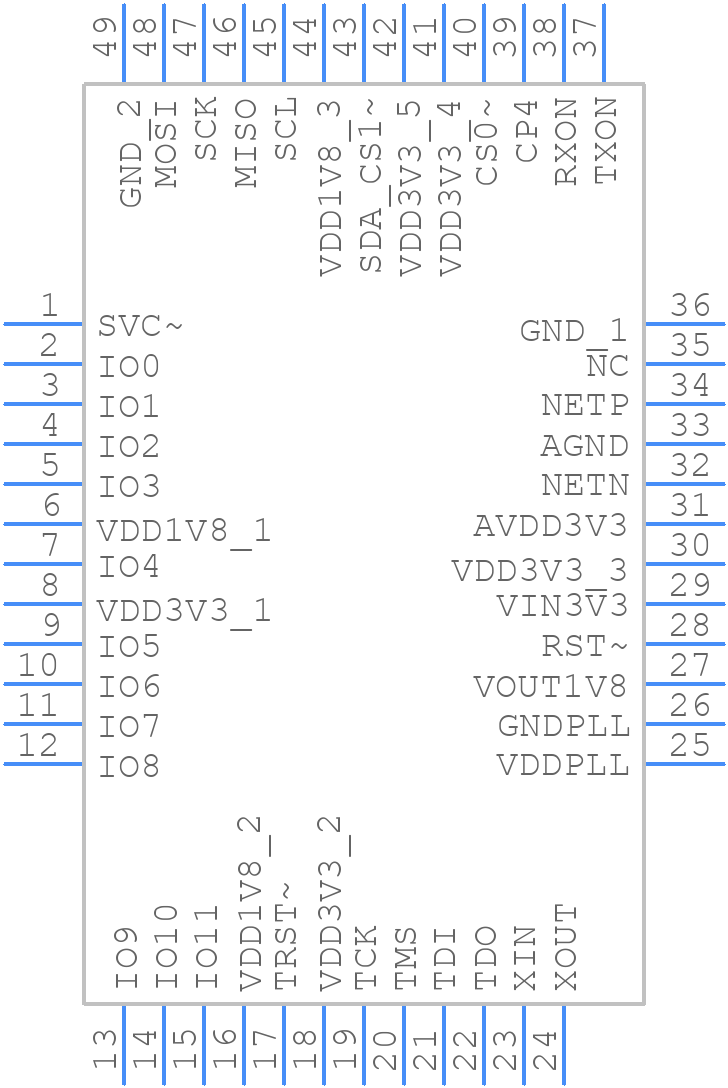

14550R-500 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
14550R-500 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48 LID QFN
click to zoom
3D Models
14550R-500 - Renesas Electronics - 3D model - Quad Flat No-Lead - 48 LID QFN
click to zoom

14550R-500 Details

  • Manufacturer Part Number:

    14550R-500

  • Brand Name:

    Renesas

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

14550R-500 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN2732EU0100) which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The 14550R-500 also has a built-in overcurrent detection feature, but it's not enabled by default and requires external resistors to set the detection threshold.
  • According to Renesas, the maximum allowed voltage on the VCC pin during power-up and power-down sequences is 6.5V. Exceeding this voltage may cause damage to the device.
  • Renesas provides EMC design guidelines in their application note (R01AN2732EU0100) which include recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure EMC compliance.
  • The recommended operating temperature range for the 14550R-500 is -40°C to 105°C. However, the device can operate up to 125°C with derating. It's essential to follow the thermal design guidelines to ensure reliable operation within the specified temperature range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

14550R-500 Overview

Use the download button to access the 14550R-500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14550, or try a keyword search
