1456404 - Phoenix Contact

Description: SACC-SQ-M12FSD-4CON-20-L180 - Device connector front mounting, Universal, 4-position, Socket, straight, M12-SPEEDCON, D-coding, Wave soldering, 0.34 mm<sup>2</sup>, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb &lt; 0.1%), a lead-free alternative is possible on request in advance

Download 1456404 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1456404 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

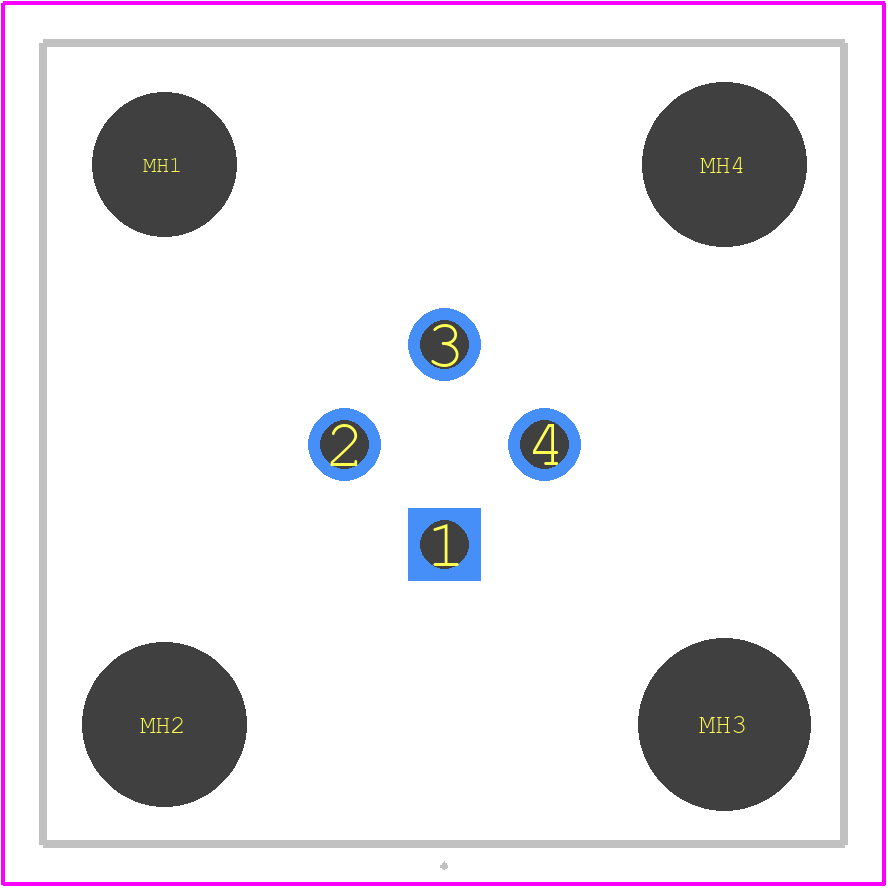

1456404 - Phoenix Contact PCB footprint - Other - Other - 1456404
click to zoom
3D Models
1456404 - Phoenix Contact - 3D model - Other - 1456404
click to zoom

1456404 Details

  • Manufacturer Part Number:

    1456404

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    9

  • Additional Feature:

    IEC-61076-2-101, RATED VOLTAGE: 250V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;EAC;UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

1456404 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the Phoenix Contact torque guide for specific recommendations.
  • Yes, the 1456404 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to prevent loosening or damage.
  • The 1456404 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and protection of the connector and cables to maintain the IP67 rating.
  • Yes, the 1456404 connector is designed to accommodate cables with a range of diameters. However, it's essential to consult the Phoenix Contact cable size chart to ensure compatibility and proper termination.
  • The 1456404 connector has an operating temperature range of -40°C to +125°C. However, it's essential to consider the specific application and environmental conditions to ensure reliable operation.
