1456446 - Phoenix Contact

Description: SACC-SQ-M12FS-5CON-20-L180 - Device connector front mounting, Universal, 5-position, Socket, straight, M12-SPEEDCON, A-coding, Wave soldering, 0.34 mm<sup>2</sup>, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb &lt; 0.1%), a lead-free alternative is possible on request in advance

Download 1456446 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1456446 - Phoenix Contact - PCB symbol
click to zoom

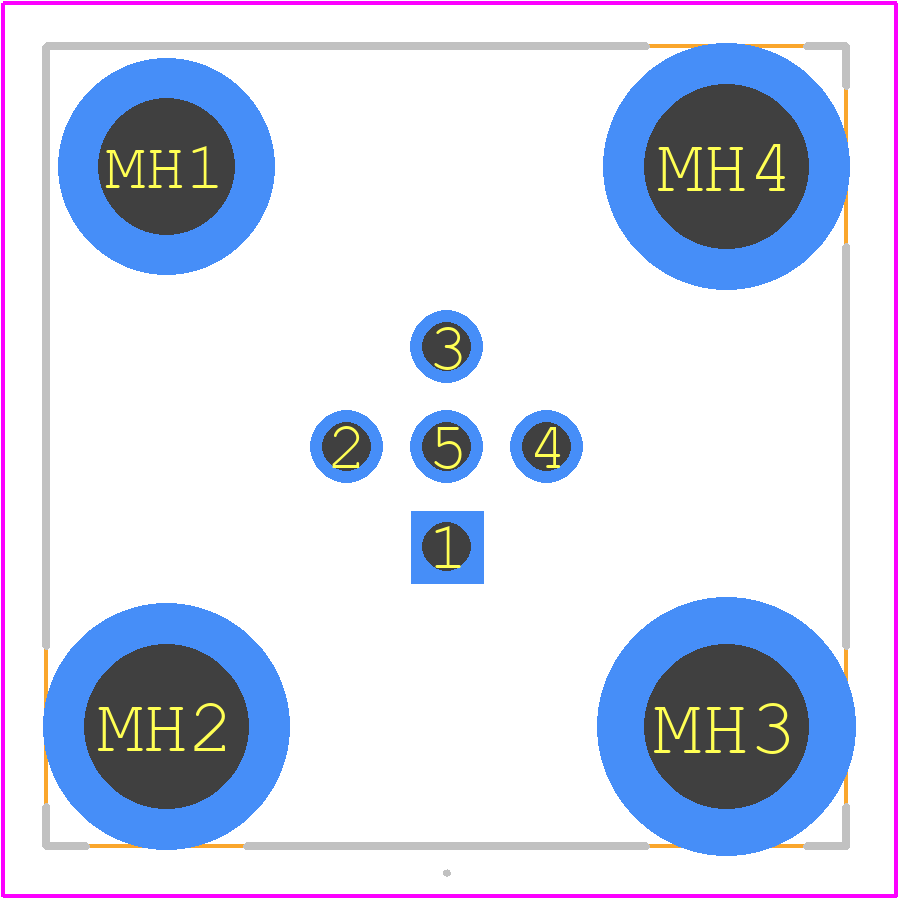

PCB Footprints
1456446 - Phoenix Contact PCB footprint - Other - Other - 1456446-2
click to zoom
3D Models
1456446 - Phoenix Contact - 3D model - Other - 1456446-2
click to zoom

1456446 Details

  • Manufacturer Part Number:

    1456446

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    IEC-61076-2-101, RATED CURRENT: 4A; RATED VOLTAGE: 60V

  • Backshell Type:

    SOLID

  • Body Depth:

    0.596 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • Mixed Contacts:

    YES

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;EAC;UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

1456446 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1456446 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific applications.
  • The 1456446 connector is rated for operating temperatures from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's recommended to consult the datasheet and perform additional testing for specific environmental conditions.
  • No, the 1456446 connector is designed for use with wire gauges AWG 24 to AWG 30. Using a larger wire gauge may compromise the connector's performance and reliability.
  • Yes, the 1456446 connector is designed for automated assembly and reflow soldering processes. However, it's recommended to follow Phoenix Contact's guidelines for soldering and assembly to ensure optimal results.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1456446 Overview

Use the download button to access the 1456446 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14564, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
