1457526 - Phoenix Contact

Description: SACC-CI-M12MS- 5CON-TOR 32 - Contact carrier, 5-position, Pin, straight, M12, A-coding, THR solder connection, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Download 1457526 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1457526 - Phoenix Contact - PCB symbol
click to zoom

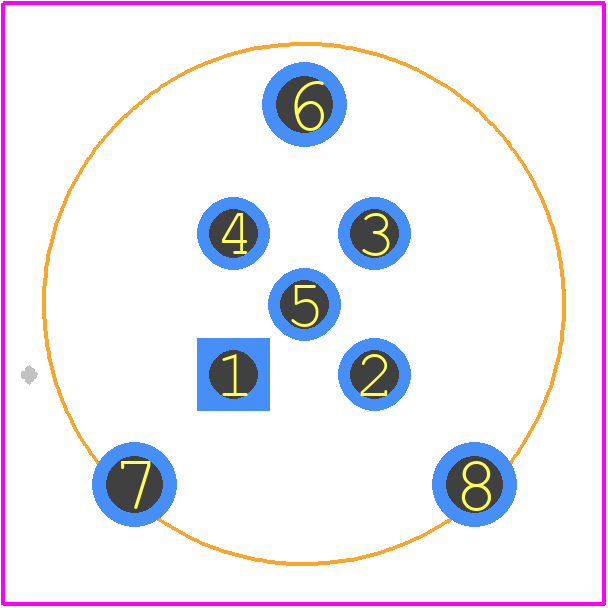

PCB Footprints
1457526 - Phoenix Contact PCB footprint - Other - Other - 1457526
click to zoom
3D Models
1457526 - Phoenix Contact - 3D model - Other - 1457526
click to zoom

1457526 Details

  • Manufacturer Part Number:

    1457526

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    IEC-61076-2-101, RATED VOLTAGE: 60V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;EAC;UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

1457526 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1457526 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1457526 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, making it easy to integrate into existing systems.
  • The maximum current rating of the 1457526 is 12 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1457526 is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration, making it suitable for use in industrial and outdoor applications.
  • The 1457526 has an IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in applications where exposure to moisture is a concern.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1457526 Overview

Use the download button to access the 1457526 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14575, or try a keyword search, such as Other Circular Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
