1457649 Frequently Asked Questions (FAQs)

• What is the recommended torque for screwing the connector onto a PCB?
  The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and manufacturer's recommendations for optimal results.
• Can I use this connector in high-vibration environments?
  Yes, the 1457649 connector is designed to withstand vibrations and shocks according to IEC 61373 Category 1, Class 1. However, it's crucial to ensure proper mounting and secure fastening to the PCB.
• Is the connector suitable for use in humid or wet environments?
  The 1457649 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
• Can I use this connector for high-current applications?
  The 1457649 connector is rated for up to 12 A per pin, but it's essential to consider the PCB design, wire gauge, and overall system architecture to ensure safe and reliable operation.

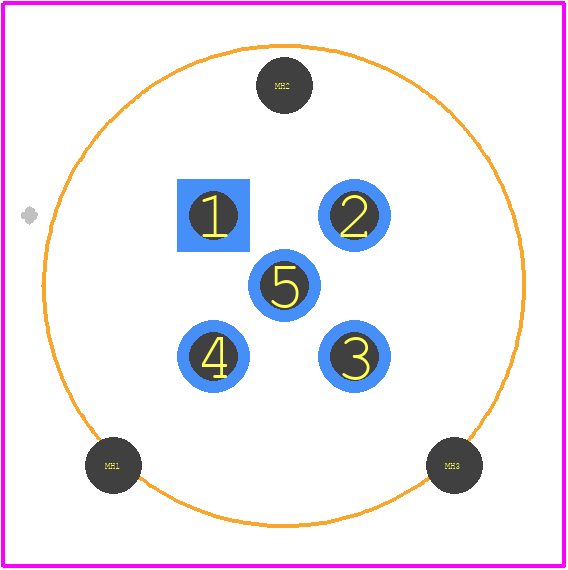

• Are there any specific PCB layout considerations for this connector?
  Yes, it's recommended to follow Phoenix Contact's guidelines for PCB layout, including keeping the connector's footprint clear of other components, using a sufficient solder mask, and ensuring proper thermal relief.
